Throw
130mm at 97° -
Height
74mm at 38° -
Diameter
Ø 16mm -
Material
Mild Steel
KVA-004

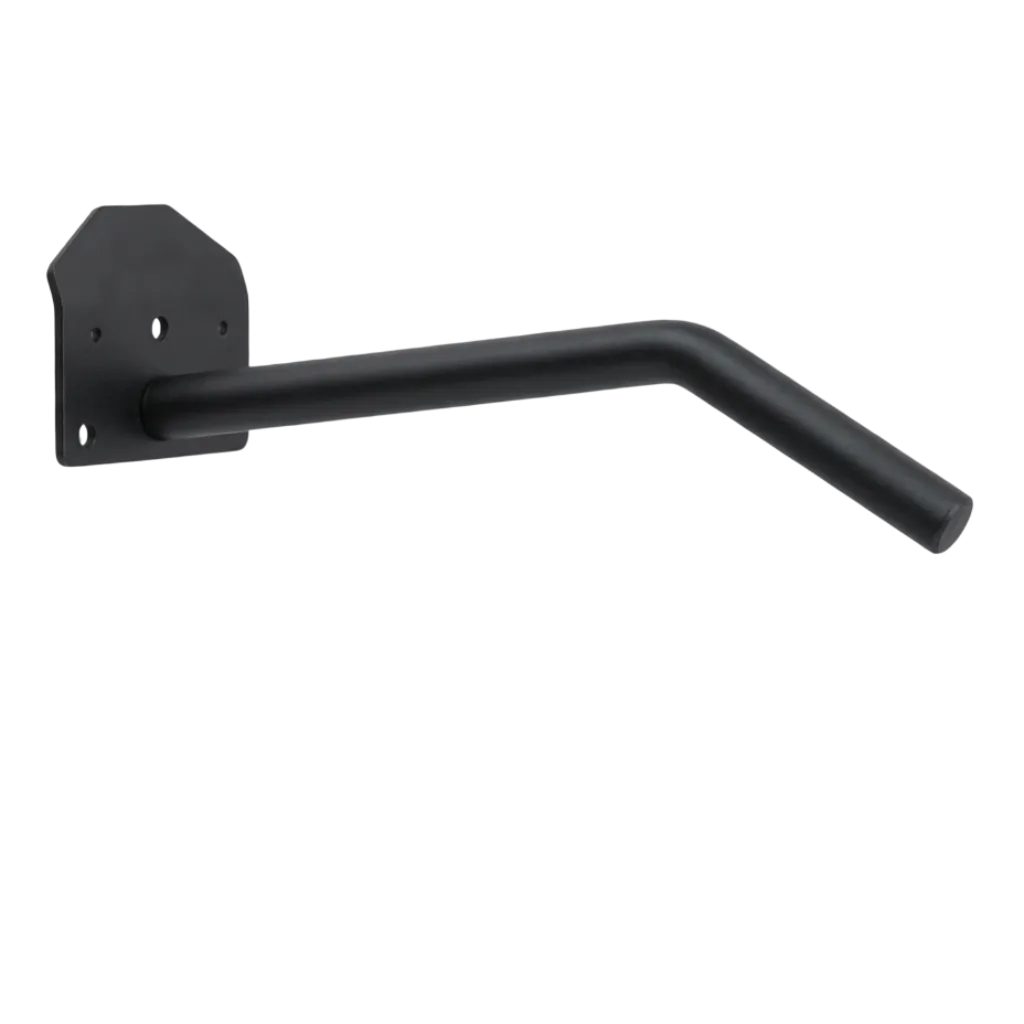

The KVA-004 is a rigid, angled extension mirror mounting arm engineered for medium-duty commercial and utility vehicles requiring fixed outward reach and downward angle positioning. Built with a solid flat baseplate mount connected to a tubular boom featuring a distinct downward bend, it ensures optimal field-of-view extension, high structural rigidity, and effective vibration dampening under rugged operational conditions.
ENQUIRE NOW-
B2B COMMERCIAL / EXPORT
Full System Specifications
Structural & Material Specifications
-
Material Grade
Mild Steel
-
Frame Profile
Flat Baseplate Mount with Angled Extension Boom
-
Surface Treatment
Premium Matte Black Powder Coating
-
Structural Rating
Medium-Duty Commercial Standard
Mounting & Environmental Performance
-
Base Mounting Interface
Heavy-Duty Multi-Hole Flat Baseplate Mount
-
Compatible Clamp Size
Multi-fit 10 mm to 46 mm clamp assemblies
-
Vibration Dampening
Integrated High-Durometer Isolation Bushings / Gaskets
-
Environmental Resistance
Weatherproof, UV-Stabilized, and Salt-Spray Protected
Available Variants
Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
-
01B2B COMMERCIAL / EXPORT
VM4 Series
The VM4 Series is a heavy-duty, high-visibility vehicle mirror system engineered to deliver maximum field of view and operational durability in demanding environments. Featuring a compact 200 x 200 mm (7.8" x 7.8") high-clarity lens, it enhances operator situational awareness, reduces blind spots, and withstands harsh vehicular vibration and environmental conditions.
-
02B2B COMMERCIAL / EXPORT
MA22-045-01-4-T6
The MA22-045-01-4-T6 is a medium-reach, heavy-duty mounting arm engineered for specialized vehicle mirror applications requiring an optimal balance of extension and structural rigidity. Featuring a wide single-bay open frame paired with a high-elevation vertical riser, this T6-grade aluminum assembly delivers superior vibration damping and impact resistance in demanding off-road and commercial operations.
-
03B2B COMMERCIAL / EXPORT
VM1R Series
The VM1R Series is a robust vehicle mirror designed to provide a wide and clear rearward view for demanding vehicle applications. Its large 305 × 205 mm lens offers enhanced visibility, making it suitable for commercial, utility, tactical, and heavy duty vehicles.
-
04B2B COMMERCIAL / EXPORT
KVA-005
The KVA-005 is a wide-reach angled extension mirror mounting arm designed for medium-duty commercial and utility vehicles requiring extended lateral clearance and downward viewing angles. Constructed with a broad square mounting plate and a continuous tubular boom featuring a downward elbow bend, it delivers maximum stability, high torsional strength, and effective vibration mitigation under rugged operating conditions.
-
05B2B COMMERCIAL / EXPORT
VM3 Series
The VM3 Series is a heavy-duty, high-visibility vehicle mirror system engineered to deliver maximum field of view and operational durability in demanding environments. Featuring a compact 207 x 146 mm (8.1" x 5.74") high-clarity lens, it enhances operator situational awareness, reduces blind spots, and withstands harsh vehicular vibration and environmental conditions.
-
06B2B COMMERCIAL / EXPORT
MA-526
The MA-526 is an extended angled mirror mounting arm designed for medium-duty commercial and utility vehicles requiring high lateral outreach and overhead positioning. Precision-engineered with a heavy-duty single-pivot hinge base and a continuous tubular boom extended at an upward angle, it offers an expanded field of view, drag resistance, and reliable vibration dampening in tough operational environments.
-
07B2B COMMERCIAL / EXPORT
MA22-080-01-4-T6
The MA22-080-01-4-T6 is an extended dual-bay closed-loop mounting assembly engineered for heavy-duty vehicular mirror systems requiring maximum stability and extended outward reach. Precision-machined from high-strength T6-grade aluminum alloy, it features dual-anchor hinge mounting blocks connected by a multi-window reinforced frame, providing exceptional torsional rigidity, wind-load resistance, and vibration isolation under severe operational conditions.
-
08B2B COMMERCIAL / EXPORT
MA22-062-01-4-T6
The MA22-062-01-4-T6 is an extended dual-bay mounting arm assembly engineered to provide exceptional outboard reach and vertical clearance for commercial and tactical vehicle mirror systems. Precision-fabricated from high-grade T6 aluminum alloy, it features a widened dual-window horizontal extension paired with an extra-tall upright riser to ensure solid structural support, drag resistance, and vibration isolation under high-speed operational conditions.
