Radius
300mm -
Fitting
16 - 32mm -
Class
V / VI -
NATO Storage Number
2540-99-753-3058

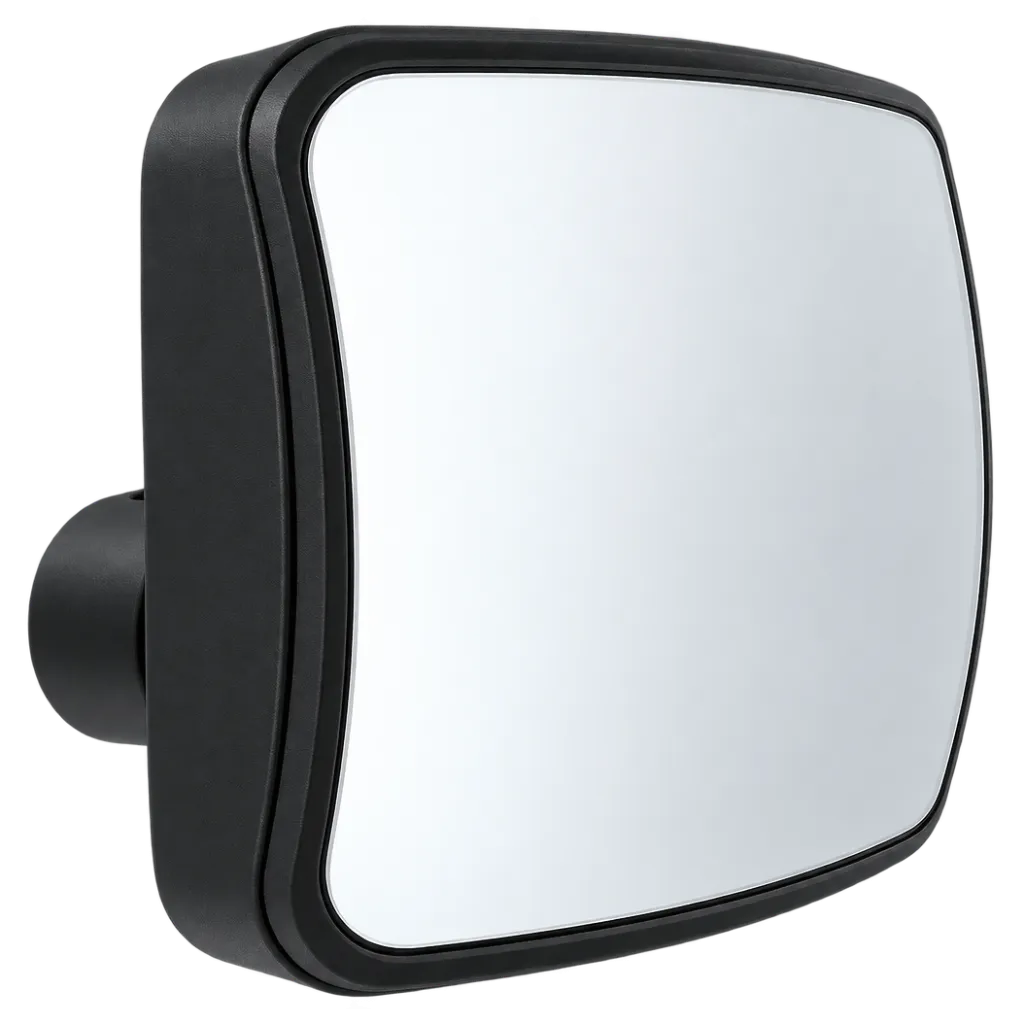

VM5 Series
The VM5 Series is a premium, extended-view vehicle mirror system engineered for maximum blind-spot reduction and operational safety in high-risk environments. Featuring an expanded 196 x 296 mm (7.71" x 11.65") high-clarity lens, it delivers ultra-wide coverage, superior rearward visibility, and robust vibration damping across heavy industrial and military fleet applications.
ENQUIRE NOW-
B2B COMMERCIAL / EXPORT
Full System Specifications
Optical & Build Specifications
-
Lens Dimensions
196 x 296 mm (7.71" x 11.65")
-
Aspect Ratio
1.51:1 Tall Panoramic Profile
-
Lens Type
Wide-Angle Convex Shatterproof Acrylic
-
Reflective Coating
Hydrophobic Anti-Glare Chrome Finish (92% Reflectivity)
Mounting & Environmental Performance
-
Mounting Interface
Heavy-Duty Dual-Clamp 32 mm Swivel Socket
-
Adjustment Range
±60° Horizontal / Vertical Tilt Adjustment
-
Vibration Resistance
Up to 10 G RMS Heavy Industrial Grade
-
Operating Temperature
-45°C to +90°C
Available Variants
Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
-
01B2B COMMERCIAL / EXPORT
MA-006
The MA-006 is a compact, medium-duty ball-head mounting arm designed for precision vehicle auxiliary mirror and device mounting. Precision-engineered with a sleek, solid cantilever extension arm attached to a vertical hinge base and topped with a standardized spherical ball stud, it provides multi-axis tilt and rotation adjustment while offering robust vibration resistance under demanding field conditions.
-
02B2B COMMERCIAL / EXPORT
MA-620
The MA-620 is an extra-tall dual-anchor closed-loop mirror mounting assembly engineered for medium-duty commercial transport and fleet vehicles requiring maximum vertical span, stability, and vibration dampening. Built with top and bottom mounting flanges linked by a multi-bay reinforced vertical frame, it offers outstanding torsional strength and wind-load resistance in high-speed, heavy-duty road applications.
-
03B2B COMMERCIAL / EXPORT
MA-526
The MA-526 is an extended angled mirror mounting arm designed for medium-duty commercial and utility vehicles requiring high lateral outreach and overhead positioning. Precision-engineered with a heavy-duty single-pivot hinge base and a continuous tubular boom extended at an upward angle, it offers an expanded field of view, drag resistance, and reliable vibration dampening in tough operational environments.
-
04B2B COMMERCIAL / EXPORT
MA-600
The MA-600 is an inverted U-loop mirror mounting arm engineered for medium-duty commercial and fleet vehicles requiring dual-point mirror attachment and wide-view stability. Designed with a continuous curved tubular frame mounted to a vertical single-hinge pivot base, it provides exceptional structural balance, wind resistance, and vibration isolation for main and auxiliary side-view mirrors.
-
05B2B COMMERCIAL / EXPORT
MA22-039-01-4-T6
The MA22-039-01-4-T6 is a compact, high-rigidity mirror mounting arm engineered for tight-clearance vehicular applications requiring high stability. Built with a single-bay reinforced loop body and an ultra-tall vertical upright, this high-strength T6 aluminum alloy arm offers maximum structural support and vibration reduction while maintaining a slim lateral profile.
-
06B2B COMMERCIAL / EXPORT
MA22-062-01-4-T6
The MA22-062-01-4-T6 is an extended dual-bay mounting arm assembly engineered to provide exceptional outboard reach and vertical clearance for commercial and tactical vehicle mirror systems. Precision-fabricated from high-grade T6 aluminum alloy, it features a widened dual-window horizontal extension paired with an extra-tall upright riser to ensure solid structural support, drag resistance, and vibration isolation under high-speed operational conditions.
-
07B2B COMMERCIAL / EXPORT
VM4 Series
The VM4 Series is a heavy-duty, high-visibility vehicle mirror system engineered to deliver maximum field of view and operational durability in demanding environments. Featuring a compact 200 x 200 mm (7.8" x 7.8") high-clarity lens, it enhances operator situational awareness, reduces blind spots, and withstands harsh vehicular vibration and environmental conditions.
-
08B2B COMMERCIAL / EXPORT
VM3 Series
The VM3 Series is a heavy-duty, high-visibility vehicle mirror system engineered to deliver maximum field of view and operational durability in demanding environments. Featuring a compact 207 x 146 mm (8.1" x 5.74") high-clarity lens, it enhances operator situational awareness, reduces blind spots, and withstands harsh vehicular vibration and environmental conditions.
