Radius
1600mm -
Fitting
16 - 32mm -
Class
II -
NATO Storage Number
2540-99-852-5383

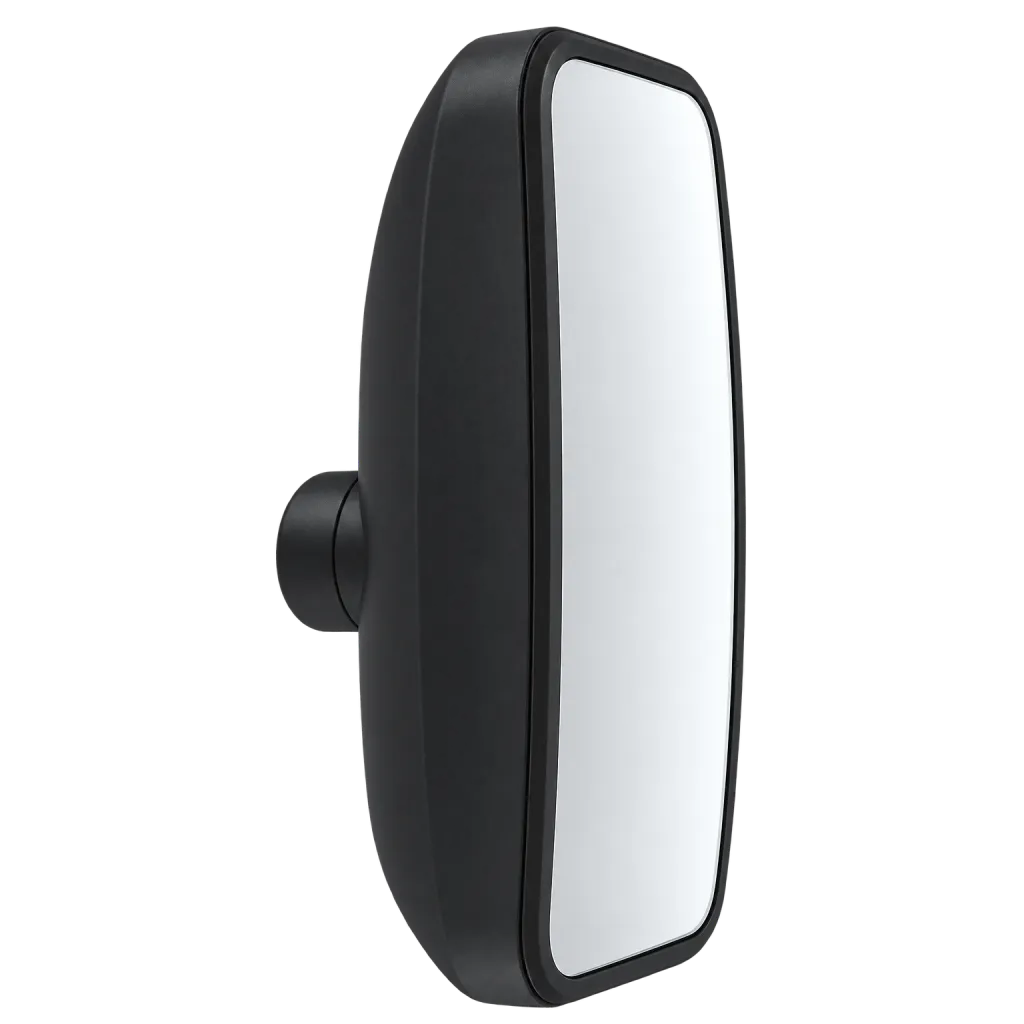

VM100 Series
The VM100 Series is a high-performance, extra-tall main vision mirror system engineered for primary side-view applications across large industrial, commercial, and tactical transport vehicles. Featuring an elongated 383 x 183 mm (15" x 7.2") optical profile, it provides exceptional vertical and depth awareness to effectively monitor full vehicle lengths and eliminate critical side-lane blind spots.
ENQUIRE NOW-
B2B COMMERCIAL / EXPORT
Full System Specifications
Optical & Build Specifications
-
Lens Dimensions
383 x 183 mm (15" x 7.2")
-
Aspect Ratio
2.09:1 Vertical Aspect Profile
-
Lens Type
First-Surface Chrome-Coated Safety Glass (Glare-Reducing)
-
Reflective Coating
Enhanced Anti-Reflective & Hydrophobic Layer (94% Reflectivity)
Mounting & Environmental Performance
-
Mounting Interface
Heavy-Duty Universal Tube Clamp (28–35 mm Shaft)
-
Adjustment Range
Dual-Axis Precision Friction Hinge (±35° Pitch/Roll)
-
Vibration Resistance
Up to 15 G RMS Heavy Vehicle Standard
-
Operating Temperature
-50°C to +95°C
Available Variants
Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
-
01B2B COMMERCIAL / EXPORT
MA-610
The MA-610 is an extended drop-down L-arm mirror mounting assembly engineered for medium-duty commercial and fleet vehicles requiring downward mirror positioning and expanded lateral visibility. Designed with a continuous tubular frame featuring a high-rise bend and long vertical drop attached to a heavy-duty single-hinge pivot base, it offers optimal load balance, wind resistance, and vibration dampening in severe operational environments.
-
02B2B COMMERCIAL / EXPORT
MA22-051-01-4-T6
The MA22-051-01-4-T6 is an ultra-tall, gusset-reinforced heavy-duty mounting arm designed for severe-duty vehicle applications demanding high structural stability at maximum vertical reach. Crafted from high-strength T6-grade aluminum alloy, it features an integrated diagonal truss strut bridging the dual-bay base frame to an extra-long vertical riser, providing exceptional rigidity against high-speed wind loads and heavy dynamic vibration.
-
03B2B COMMERCIAL / EXPORT
KVA-004
The KVA-004 is a rigid, angled extension mirror mounting arm engineered for medium-duty commercial and utility vehicles requiring fixed outward reach and downward angle positioning. Built with a solid flat baseplate mount connected to a tubular boom featuring a distinct downward bend, it ensures optimal field-of-view extension, high structural rigidity, and effective vibration dampening under rugged operational conditions.
-
04B2B COMMERCIAL / EXPORT
MA-600
The MA-600 is an inverted U-loop mirror mounting arm engineered for medium-duty commercial and fleet vehicles requiring dual-point mirror attachment and wide-view stability. Designed with a continuous curved tubular frame mounted to a vertical single-hinge pivot base, it provides exceptional structural balance, wind resistance, and vibration isolation for main and auxiliary side-view mirrors.
-
05B2B COMMERCIAL / EXPORT
MA22-024-01-4-T6
The MA22-024-01-4-T6 is an extended-height, heavy-duty mounting arm assembly engineered for high-reach bracketry and overhead mirror positioning on specialized vehicles. Constructed from high-tensile T6-grade aluminum alloy, it features an elongated vertical riser, a reinforced dual-window horizontal span, and a heavy-duty hinged base built to resist severe operational vibration and mechanical strain.
-
06B2B COMMERCIAL / EXPORT
MA-006
The MA-006 is a compact, medium-duty ball-head mounting arm designed for precision vehicle auxiliary mirror and device mounting. Precision-engineered with a sleek, solid cantilever extension arm attached to a vertical hinge base and topped with a standardized spherical ball stud, it provides multi-axis tilt and rotation adjustment while offering robust vibration resistance under demanding field conditions.
-
07B2B COMMERCIAL / EXPORT
MA22-080-01-4-T6
The MA22-080-01-4-T6 is an extended dual-bay closed-loop mounting assembly engineered for heavy-duty vehicular mirror systems requiring maximum stability and extended outward reach. Precision-machined from high-strength T6-grade aluminum alloy, it features dual-anchor hinge mounting blocks connected by a multi-window reinforced frame, providing exceptional torsional rigidity, wind-load resistance, and vibration isolation under severe operational conditions.
-
08B2B COMMERCIAL / EXPORT
VM3 Series
The VM3 Series is a heavy-duty, high-visibility vehicle mirror system engineered to deliver maximum field of view and operational durability in demanding environments. Featuring a compact 207 x 146 mm (8.1" x 5.74") high-clarity lens, it enhances operator situational awareness, reduces blind spots, and withstands harsh vehicular vibration and environmental conditions.
