Throw
300mm -
Height
403mm -
Diameter
Ø 22mm -
Material
Aluminium

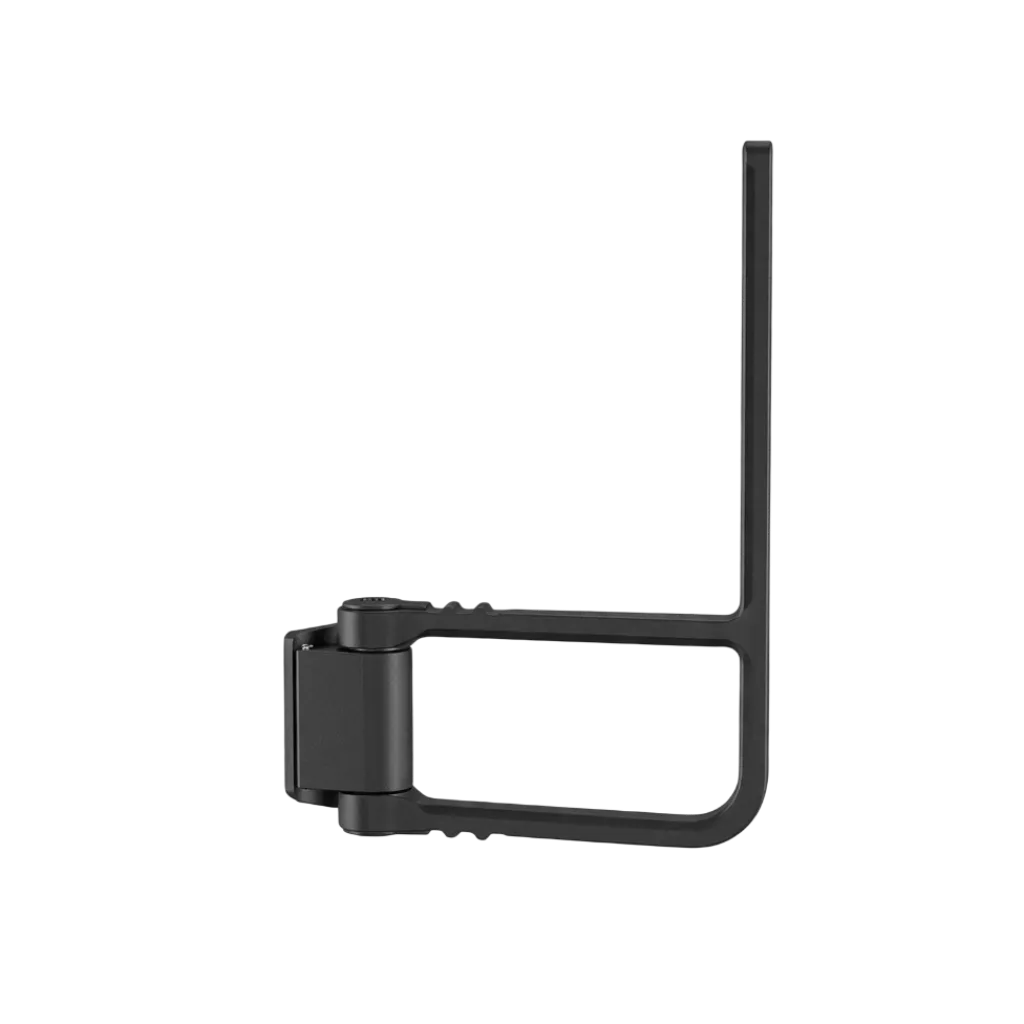

MA22-045-01-4-T6
The MA22-045-01-4-T6 is a medium-reach, heavy-duty mounting arm engineered for specialized vehicle mirror applications requiring an optimal balance of extension and structural rigidity. Featuring a wide single-bay open frame paired with a high-elevation vertical riser, this T6-grade aluminum assembly delivers superior vibration damping and impact resistance in demanding off-road and commercial operations.
ENQUIRE NOW-
B2B COMMERCIAL / EXPORT
Full System Specifications
Structural & Material Specifications
-
Material Grade
6061-T6 Aircraft-Grade Aluminum Alloy
-
Surface Treatment
Matte Anodized Black / Industrial Powder Coating
-
Frame Profile
Wide Single-Bay Loop Frame with Extended Riser Shaft
-
Structural Rating
Heavy-Duty Industrial / Off-Highway Grade
Mounting & Environmental Performance
-
Base Mounting Interface
Heavy-Duty Hinge Block with Integrated Pivot Pins
-
Load Capacity
Up to 16.5 kg (36 lbs) Static / 9.5 kg (21 lbs) Dynamic
-
Vibration Dampening
Heavy-Duty Elastomeric Isolation Dampeners
-
Environmental Resistance
Weatherproof, UV-Resistant, and Anti-Corrosive Coating
Available Variants
Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
-
01B2B COMMERCIAL / EXPORT
MA-006
The MA-006 is a compact, medium-duty ball-head mounting arm designed for precision vehicle auxiliary mirror and device mounting. Precision-engineered with a sleek, solid cantilever extension arm attached to a vertical hinge base and topped with a standardized spherical ball stud, it provides multi-axis tilt and rotation adjustment while offering robust vibration resistance under demanding field conditions.
-
02B2B COMMERCIAL / EXPORT
KVA-003
The KVA-003 is a curved gooseneck mirror mounting arm engineered for commercial and medium-duty utility vehicles requiring overhead reach and downward angle positioning. Featuring a high-arching curved tubular boom attached to a angled pivot mounting flange, it provides optimal blind-spot coverage, aerodynamic stability, and effective vibration isolation under severe field conditions.
-
03B2B COMMERCIAL / EXPORT
VM3 Series
The VM3 Series is a heavy-duty, high-visibility vehicle mirror system engineered to deliver maximum field of view and operational durability in demanding environments. Featuring a compact 207 x 146 mm (8.1" x 5.74") high-clarity lens, it enhances operator situational awareness, reduces blind spots, and withstands harsh vehicular vibration and environmental conditions.
-
04B2B COMMERCIAL / EXPORT
MA22-098-01-4-T6
The MA22-098-01-4-T6 is an extended-outreach mounting arm assembly designed for wide-body vehicles requiring significant side clearance and overhead riser positioning. Precision-crafted from high-strength T6-grade aluminum alloy, it features a widened dual-window horizontal extension paired with an ultra-tall vertical stem, delivering optimal structural load balance, drag stability, and vibration dampening under rugged operational conditions.
-
05B2B COMMERCIAL / EXPORT
MA-526
The MA-526 is an extended angled mirror mounting arm designed for medium-duty commercial and utility vehicles requiring high lateral outreach and overhead positioning. Precision-engineered with a heavy-duty single-pivot hinge base and a continuous tubular boom extended at an upward angle, it offers an expanded field of view, drag resistance, and reliable vibration dampening in tough operational environments.
-
06B2B COMMERCIAL / EXPORT
MA-640
The MA-640 is an extended S-curve vertical mirror mounting arm engineered for medium-duty commercial and fleet vehicles requiring a right-hand offset along with high overhead clearance. Precision-fabricated with a 16 mm tubular profile featuring a swan-neck S-bend attached to a heavy-duty single-pivot hinge base, it ensures optimal field-of-view positioning, low wind resistance, and superior vibration dampening under rugged operational conditions.
-
07B2B COMMERCIAL / EXPORT
KVA-005
The KVA-005 is a wide-reach angled extension mirror mounting arm designed for medium-duty commercial and utility vehicles requiring extended lateral clearance and downward viewing angles. Constructed with a broad square mounting plate and a continuous tubular boom featuring a downward elbow bend, it delivers maximum stability, high torsional strength, and effective vibration mitigation under rugged operating conditions.
-
08B2B COMMERCIAL / EXPORT
MA22-079-01-4-T6
The MA22-079-01-4-T6 is a full-frame, dual-anchor closed loop mounting assembly engineered for heavy-duty vehicle mirror systems requiring maximum structural rigidity and stability. Precision-machined from high-strength T6-grade aluminum alloy, it features a C-clamp dual-hinge configuration with top and bottom mounting blocks connected by a multi-bay vertical frame, providing exceptional torsional strength, wind-load resistance, and vibration isolation under severe operational environments.
