Radius
300mm -
Fitting
16 - 46mm -
Class
IV / V -
NATO Storage Number
2540-99-377-5650

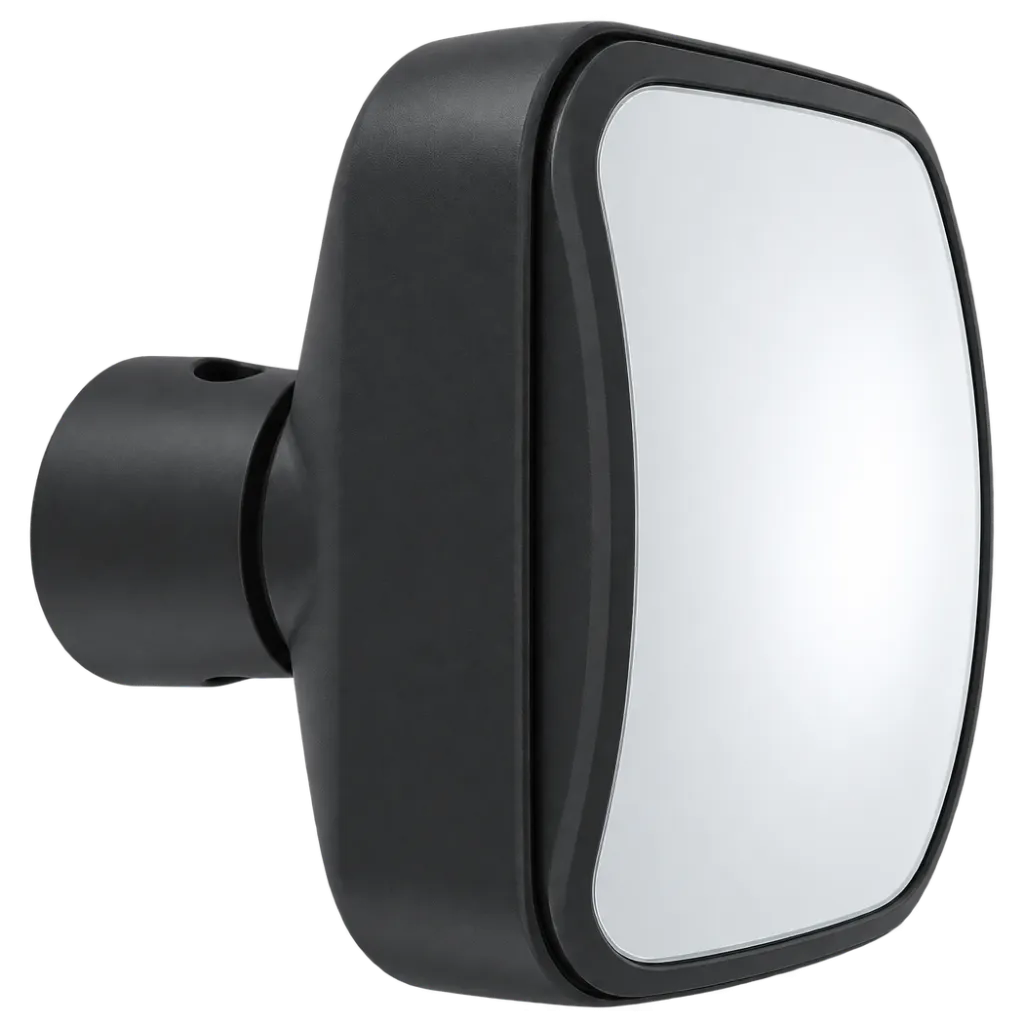

VM4 Series
The VM4 Series is a heavy-duty, high-visibility vehicle mirror system engineered to deliver maximum field of view and operational durability in demanding environments. Featuring a compact 200 x 200 mm (7.8" x 7.8") high-clarity lens, it enhances operator situational awareness, reduces blind spots, and withstands harsh vehicular vibration and environmental conditions.
ENQUIRE NOW-
B2B COMMERCIAL / EXPORT
Full System Specifications
Optical & Build Specifications
-
Lens Dimensions
200 x 200 mm (7.8" x 7.8")
-
Aspect Ratio
1:1 Square Panoramic Field
-
Lens Type
High-Visibility Aspheric Dual-Zone Lens
-
Reflective Coating
Premium Blue-Tinted Anti-Glare & Scratch-Resistant Hardcoat
Mounting & Environmental Performance
-
Mounting Interface
Heavy-Duty Universal Sleeve Bushing (30 mm Shaft)
-
Vibration Resistance
Up to 12 G RMS Industrial Grade Isolation
-
Operating Temperature
−40°C to +105°C
-
Ingress Protection
IP69K High-Pressure Washdown Rated
Available Variants
Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
-
01B2B COMMERCIAL / EXPORT
MA22-039-01-4-T6
The MA22-039-01-4-T6 is a compact, high-rigidity mirror mounting arm engineered for tight-clearance vehicular applications requiring high stability. Built with a single-bay reinforced loop body and an ultra-tall vertical upright, this high-strength T6 aluminum alloy arm offers maximum structural support and vibration reduction while maintaining a slim lateral profile.
-
02B2B COMMERCIAL / EXPORT
MA22-079-01-4-T6
The MA22-079-01-4-T6 is a full-frame, dual-anchor closed loop mounting assembly engineered for heavy-duty vehicle mirror systems requiring maximum structural rigidity and stability. Precision-machined from high-strength T6-grade aluminum alloy, it features a C-clamp dual-hinge configuration with top and bottom mounting blocks connected by a multi-bay vertical frame, providing exceptional torsional strength, wind-load resistance, and vibration isolation under severe operational environments.
-
03B2B COMMERCIAL / EXPORT
MA22-024-01-4-T6
The MA22-024-01-4-T6 is an extended-height, heavy-duty mounting arm assembly engineered for high-reach bracketry and overhead mirror positioning on specialized vehicles. Constructed from high-tensile T6-grade aluminum alloy, it features an elongated vertical riser, a reinforced dual-window horizontal span, and a heavy-duty hinged base built to resist severe operational vibration and mechanical strain.
-
04B2B COMMERCIAL / EXPORT
VM5 Series
The VM5 Series is a premium, extended-view vehicle mirror system engineered for maximum blind-spot reduction and operational safety in high-risk environments. Featuring an expanded 196 x 296 mm (7.71" x 11.65") high-clarity lens, it delivers ultra-wide coverage, superior rearward visibility, and robust vibration damping across heavy industrial and military fleet applications.
-
05B2B COMMERCIAL / EXPORT
MA22-080-01-4-T6
The MA22-080-01-4-T6 is an extended dual-bay closed-loop mounting assembly engineered for heavy-duty vehicular mirror systems requiring maximum stability and extended outward reach. Precision-machined from high-strength T6-grade aluminum alloy, it features dual-anchor hinge mounting blocks connected by a multi-window reinforced frame, providing exceptional torsional rigidity, wind-load resistance, and vibration isolation under severe operational conditions.
-
06B2B COMMERCIAL / EXPORT
VM100 Series
The VM100 Series is a high-performance, extra-tall main vision mirror system engineered for primary side-view applications across large industrial, commercial, and tactical transport vehicles. Featuring an elongated 383 x 183 mm (15" x 7.2") optical profile, it provides exceptional vertical and depth awareness to effectively monitor full vehicle lengths and eliminate critical side-lane blind spots.
-
07B2B COMMERCIAL / EXPORT
KVA-003
The KVA-003 is a curved gooseneck mirror mounting arm engineered for commercial and medium-duty utility vehicles requiring overhead reach and downward angle positioning. Featuring a high-arching curved tubular boom attached to a angled pivot mounting flange, it provides optimal blind-spot coverage, aerodynamic stability, and effective vibration isolation under severe field conditions.
-
08B2B COMMERCIAL / EXPORT
VM2 Series
The VM2 Series is a heavy-duty, high-visibility vehicle mirror system engineered to deliver maximum field of view and operational durability in demanding environments. Featuring a compact 205 x 150mm high-clarity lens, it enhances operator situational awareness, reduces blind spots, and withstands harsh vehicular vibration and environmental conditions.
