Throw
108mm (5° R/H) -
Height
368mm -
Diameter
Ø 16mm -
Material
Mild Steel
MA-640

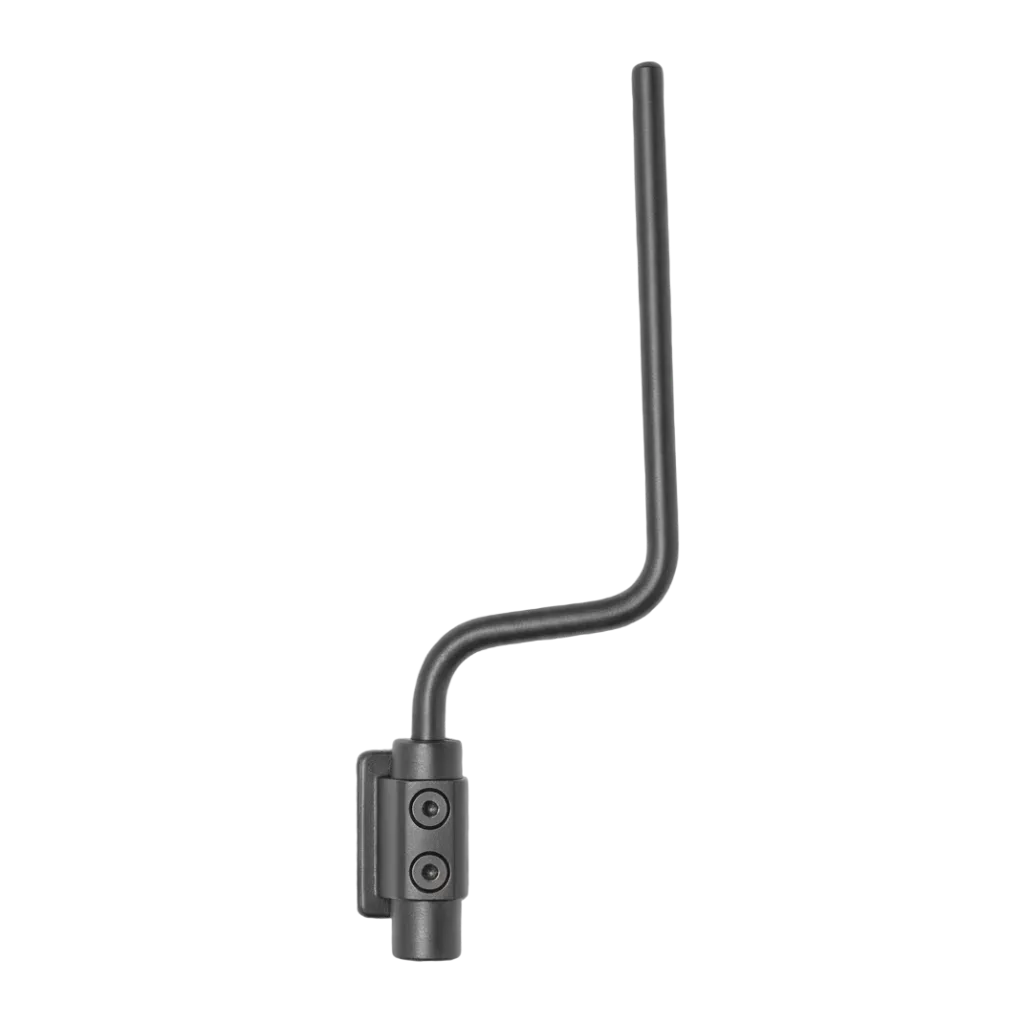

The MA-640 is an extended S-curve vertical mirror mounting arm engineered for medium-duty commercial and fleet vehicles requiring a right-hand offset along with high overhead clearance. Precision-fabricated with a 16 mm tubular profile featuring a swan-neck S-bend attached to a heavy-duty single-pivot hinge base, it ensures optimal field-of-view positioning, low wind resistance, and superior vibration dampening under rugged operational conditions.
ENQUIRE NOW-
B2B COMMERCIAL / EXPORT
Full System Specifications
Structural & Material Specifications
-
Material Grade
Mild Steel
-
Surface Treatment
Anti-Corrosion Finish
-
Structural Rating
Medium-Duty Commercial Standard
-
Vibration Dampening
Integrated High-Durometer Synthetic
Mounting & Environmental Performance
-
Base Mounting Interface
Heavy-Duty Vertical Hinge Block Mount
-
Compatible Clamp Size
Multi-fit 10 mm to 46 mm clamp assemblies
-
Deployment
Medium-duty commercial transport, utility trucks, & delivery fleets
-
Environmental Resistance
Weatherproof, UV-Stabilized, and Salt-Spray Protected
Available Variants
Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
-
01B2B COMMERCIAL / EXPORT
MA22-045-01-4-T6
The MA22-045-01-4-T6 is a medium-reach, heavy-duty mounting arm engineered for specialized vehicle mirror applications requiring an optimal balance of extension and structural rigidity. Featuring a wide single-bay open frame paired with a high-elevation vertical riser, this T6-grade aluminum assembly delivers superior vibration damping and impact resistance in demanding off-road and commercial operations.
-
02B2B COMMERCIAL / EXPORT
MA22-057-01-4-T6
The MA22-057-01-4-T6 is an extended-vertical mounting arm engineered for specialized vehicle mirror setups requiring high overhead clearance paired with a compact footprint. Precision-machined from high-strength T6-grade aluminum alloy, it features a single-window square base loop coupled with an extra-long vertical riser stem to provide stable positioning and vibration dampening under severe field conditions.
-
03B2B COMMERCIAL / EXPORT
MA22-051-01-4-T6
The MA22-051-01-4-T6 is an ultra-tall, gusset-reinforced heavy-duty mounting arm designed for severe-duty vehicle applications demanding high structural stability at maximum vertical reach. Crafted from high-strength T6-grade aluminum alloy, it features an integrated diagonal truss strut bridging the dual-bay base frame to an extra-long vertical riser, providing exceptional rigidity against high-speed wind loads and heavy dynamic vibration.
-
04B2B COMMERCIAL / EXPORT
MA22-080-01-4-T6
The MA22-080-01-4-T6 is an extended dual-bay closed-loop mounting assembly engineered for heavy-duty vehicular mirror systems requiring maximum stability and extended outward reach. Precision-machined from high-strength T6-grade aluminum alloy, it features dual-anchor hinge mounting blocks connected by a multi-window reinforced frame, providing exceptional torsional rigidity, wind-load resistance, and vibration isolation under severe operational conditions.
-
05B2B COMMERCIAL / EXPORT
MA22-079-01-4-T6
The MA22-079-01-4-T6 is a full-frame, dual-anchor closed loop mounting assembly engineered for heavy-duty vehicle mirror systems requiring maximum structural rigidity and stability. Precision-machined from high-strength T6-grade aluminum alloy, it features a C-clamp dual-hinge configuration with top and bottom mounting blocks connected by a multi-bay vertical frame, providing exceptional torsional strength, wind-load resistance, and vibration isolation under severe operational environments.
-
06B2B COMMERCIAL / EXPORT
VM100 Series
The VM100 Series is a high-performance, extra-tall main vision mirror system engineered for primary side-view applications across large industrial, commercial, and tactical transport vehicles. Featuring an elongated 383 x 183 mm (15" x 7.2") optical profile, it provides exceptional vertical and depth awareness to effectively monitor full vehicle lengths and eliminate critical side-lane blind spots.
-
07B2B COMMERCIAL / EXPORT
VM4 Series
The VM4 Series is a heavy-duty, high-visibility vehicle mirror system engineered to deliver maximum field of view and operational durability in demanding environments. Featuring a compact 200 x 200 mm (7.8" x 7.8") high-clarity lens, it enhances operator situational awareness, reduces blind spots, and withstands harsh vehicular vibration and environmental conditions.
-
08B2B COMMERCIAL / EXPORT
MA-610
The MA-610 is an extended drop-down L-arm mirror mounting assembly engineered for medium-duty commercial and fleet vehicles requiring downward mirror positioning and expanded lateral visibility. Designed with a continuous tubular frame featuring a high-rise bend and long vertical drop attached to a heavy-duty single-hinge pivot base, it offers optimal load balance, wind resistance, and vibration dampening in severe operational environments.
