Throw
235mm -
Height
603mm -
Diameter
Ø 22mm -
Material
Aluminium
MA22-065-01-4-T6

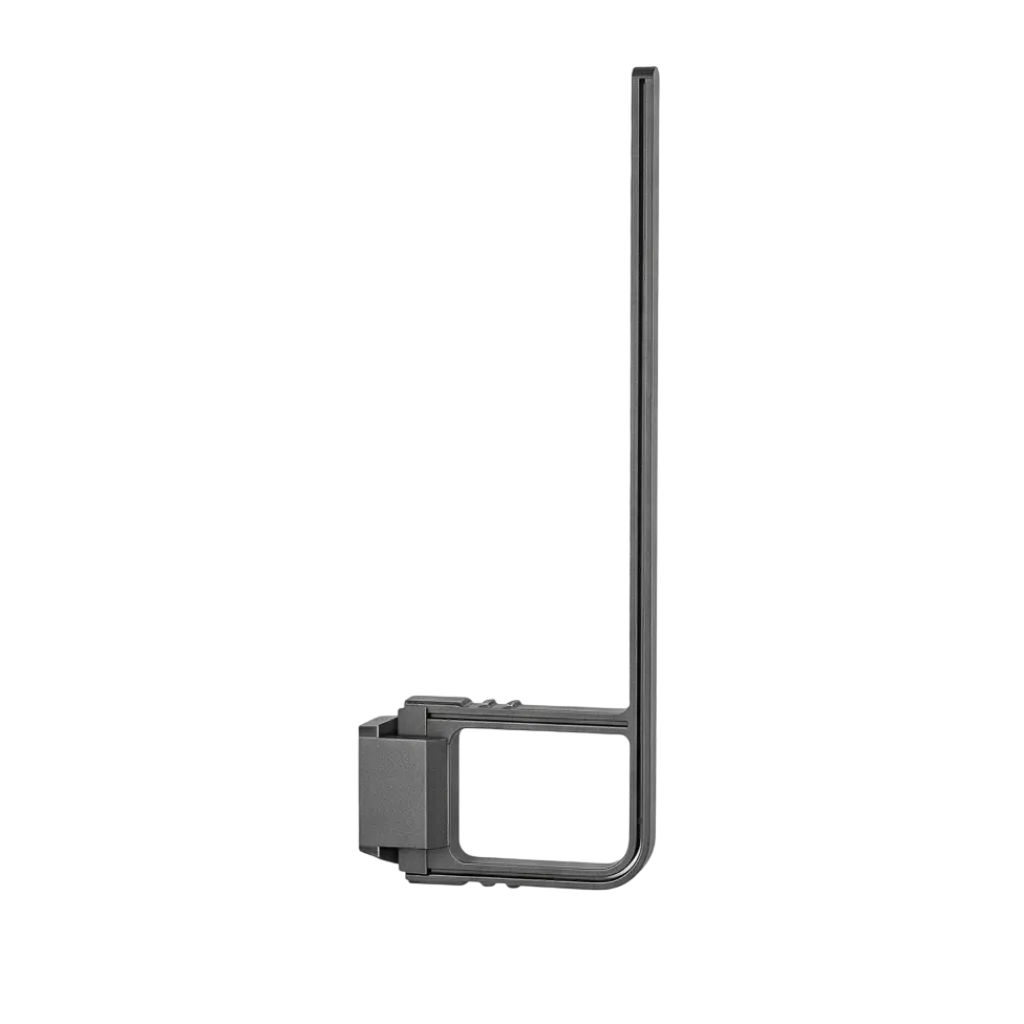

The MA22-065-01-4-T6 is an ultra-tall, compact-base mounting arm assembly engineered for heavy-duty vehicular mirror applications requiring maximum vertical clearance with minimal lateral footprint. Crafted from high-strength T6-grade aluminum alloy, it combines a streamlined single-window base frame with an extra-long upright riser stem, offering exceptional structural rigidity, wind-load resistance, and vibration dampening under severe field conditions.
ENQUIRE NOW-
B2B COMMERCIAL / EXPORT
Full System Specifications
Structural & Material Specifications
-
Material Grade
6061-T6 Aircraft-Grade Aluminum Alloy
-
Surface Treatment
Industrial Anti-Corrosion Powder Coating
-
Frame Profile
Single-Bay Compact Loop Base with Ultra-Tall Vertical Riser
-
Structural Rating
Severe-Duty Grade
Mounting & Environmental Performance
-
Base Mounting Interface
Heavy-Duty Single-Hinge Pivot Block with Integrated Fasteners
-
Load Capacity
Up to 17.5 kg (38.5 lbs) Static / 10 kg (22 lbs) Dynamic
-
Vibration Dampening
Internal High-Durometer Synthetic Bushings
-
Environmental Resistance
Weatherproof, Salt-Spray, and High-UV Resistant
Available Variants
Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
-
01B2B COMMERCIAL / EXPORT
MA-640
The MA-640 is an extended S-curve vertical mirror mounting arm engineered for medium-duty commercial and fleet vehicles requiring a right-hand offset along with high overhead clearance. Precision-fabricated with a 16 mm tubular profile featuring a swan-neck S-bend attached to a heavy-duty single-pivot hinge base, it ensures optimal field-of-view positioning, low wind resistance, and superior vibration dampening under rugged operational conditions.
-
02B2B COMMERCIAL / EXPORT
MA-615
The MA-615 is an extended horizontal-outreach mirror mounting arm engineered for medium-duty commercial and utility vehicles requiring wide lateral extension and optimal field of view. Designed with a continuous tubular boom featuring a sweeping 90-degree bend mounted to a heavy-duty single-pivot hinge base, it delivers superior structural stability, low wind drag, and exceptional vibration dampening under severe field conditions.
-
03B2B COMMERCIAL / EXPORT
MA22-079-01-4-T6
The MA22-079-01-4-T6 is a full-frame, dual-anchor closed loop mounting assembly engineered for heavy-duty vehicle mirror systems requiring maximum structural rigidity and stability. Precision-machined from high-strength T6-grade aluminum alloy, it features a C-clamp dual-hinge configuration with top and bottom mounting blocks connected by a multi-bay vertical frame, providing exceptional torsional strength, wind-load resistance, and vibration isolation under severe operational environments.
-
04B2B COMMERCIAL / EXPORT
VM1R Series
The VM1R Series is a robust vehicle mirror designed to provide a wide and clear rearward view for demanding vehicle applications. Its large 305 × 205 mm lens offers enhanced visibility, making it suitable for commercial, utility, tactical, and heavy duty vehicles.
-
05B2B COMMERCIAL / EXPORT
VM5 Series
The VM5 Series is a premium, extended-view vehicle mirror system engineered for maximum blind-spot reduction and operational safety in high-risk environments. Featuring an expanded 196 x 296 mm (7.71" x 11.65") high-clarity lens, it delivers ultra-wide coverage, superior rearward visibility, and robust vibration damping across heavy industrial and military fleet applications.
-
06B2B COMMERCIAL / EXPORT
MA22-023-01-4-T6
The MA22-023-01-4-T6 is a heavy-duty, L-shaped mounting arm assembly designed for secure attachment and precise positioning of vehicular mirror systems and auxiliary equipment. Constructed from high-strength T6-grade aluminum alloy, it features a dual-frame reinforced structure and a hinged pivot base for maximum stability, impact resistance, and vibration dampening under severe operational conditions.
-
07B2B COMMERCIAL / EXPORT
VM100 Series
The VM100 Series is a high-performance, extra-tall main vision mirror system engineered for primary side-view applications across large industrial, commercial, and tactical transport vehicles. Featuring an elongated 383 x 183 mm (15" x 7.2") optical profile, it provides exceptional vertical and depth awareness to effectively monitor full vehicle lengths and eliminate critical side-lane blind spots.
-
08B2B COMMERCIAL / EXPORT
VM2 Series
The VM2 Series is a heavy-duty, high-visibility vehicle mirror system engineered to deliver maximum field of view and operational durability in demanding environments. Featuring a compact 205 x 150mm high-clarity lens, it enhances operator situational awareness, reduces blind spots, and withstands harsh vehicular vibration and environmental conditions.
