Part Number
KVA-003 -
Throw
214° to 64.8° -
Diameter
Ø 16mm -
Material
Mild Steel
KVA-003

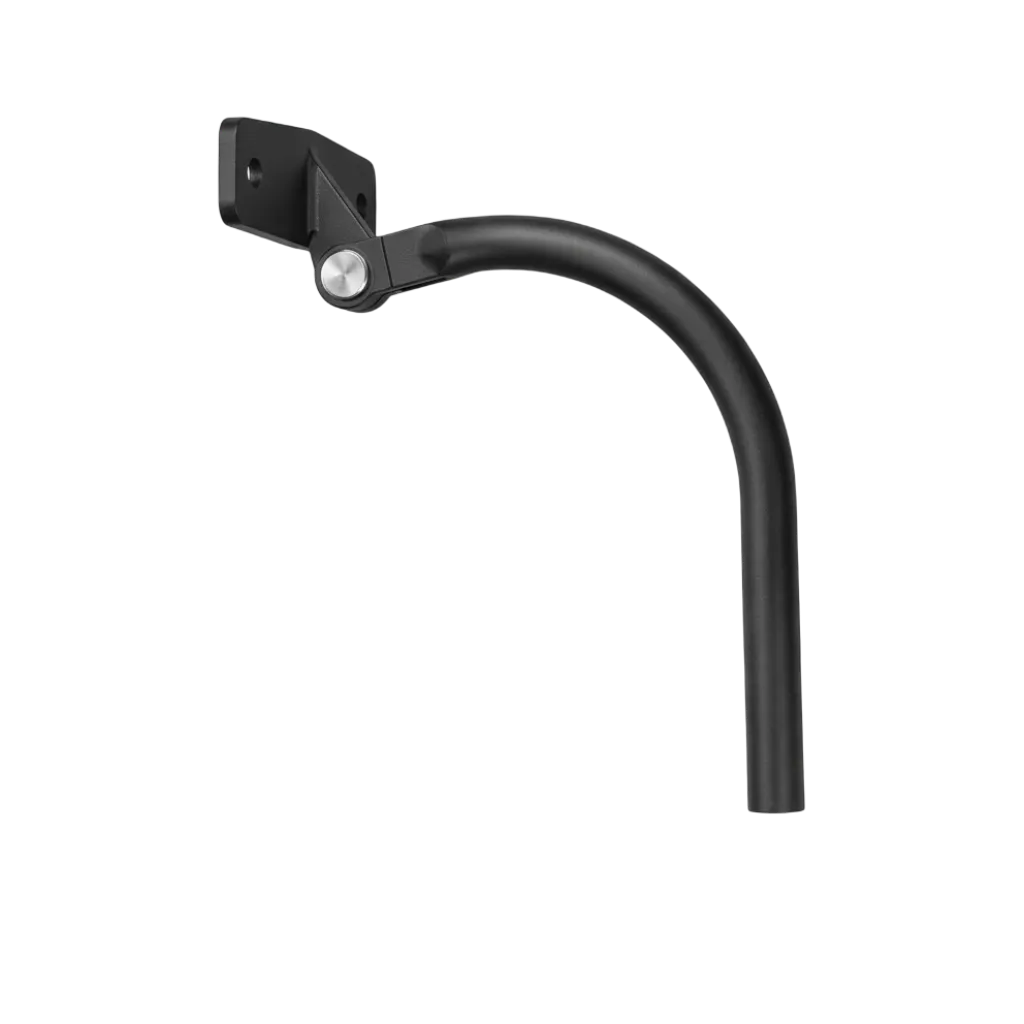

The KVA-003 is a curved gooseneck mirror mounting arm engineered for commercial and medium-duty utility vehicles requiring overhead reach and downward angle positioning. Featuring a high-arching curved tubular boom attached to a angled pivot mounting flange, it provides optimal blind-spot coverage, aerodynamic stability, and effective vibration isolation under severe field conditions.
ENQUIRE NOW-
B2B COMMERCIAL / EXPORT
Full System Specifications
Structural & Material Specifications
-
Material Grade
Mild Steel
-
Surface Treatment
Premium Matte Black Powder Coating
-
Structural Rating
Medium-Duty Commercial Standard
-
System Configuration
Angled pivot hinge base with mild steel gooseneck arm
Mounting & Environmental Performance
-
Base Mounting Interface
Heavy-Duty Angled Pivot Flange Base Mount
-
Compatible Clamp Size
Multi-fit 10 mm to 46 mm clamp assemblies
-
Vibration Dampening
Elastomeric Bushings
-
Environmental Resistance
Weatherproof, UV-Stabilized, and Salt-Spray Protected
Available Variants
Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
-
01B2B COMMERCIAL / EXPORT
KVA-005
The KVA-005 is a wide-reach angled extension mirror mounting arm designed for medium-duty commercial and utility vehicles requiring extended lateral clearance and downward viewing angles. Constructed with a broad square mounting plate and a continuous tubular boom featuring a downward elbow bend, it delivers maximum stability, high torsional strength, and effective vibration mitigation under rugged operating conditions.
-
02B2B COMMERCIAL / EXPORT
MA22-065-01-4-T6
The MA22-065-01-4-T6 is an ultra-tall, compact-base mounting arm assembly engineered for heavy-duty vehicular mirror applications requiring maximum vertical clearance with minimal lateral footprint. Crafted from high-strength T6-grade aluminum alloy, it combines a streamlined single-window base frame with an extra-long upright riser stem, offering exceptional structural rigidity, wind-load resistance, and vibration dampening under severe field conditions.
-
03B2B COMMERCIAL / EXPORT
MA22-024-01-4-T6
The MA22-024-01-4-T6 is an extended-height, heavy-duty mounting arm assembly engineered for high-reach bracketry and overhead mirror positioning on specialized vehicles. Constructed from high-tensile T6-grade aluminum alloy, it features an elongated vertical riser, a reinforced dual-window horizontal span, and a heavy-duty hinged base built to resist severe operational vibration and mechanical strain.
-
04B2B COMMERCIAL / EXPORT
VM1R Series
The VM1R Series is a robust vehicle mirror designed to provide a wide and clear rearward view for demanding vehicle applications. Its large 305 × 205 mm lens offers enhanced visibility, making it suitable for commercial, utility, tactical, and heavy duty vehicles.
-
05B2B COMMERCIAL / EXPORT
MA-526
The MA-526 is an extended angled mirror mounting arm designed for medium-duty commercial and utility vehicles requiring high lateral outreach and overhead positioning. Precision-engineered with a heavy-duty single-pivot hinge base and a continuous tubular boom extended at an upward angle, it offers an expanded field of view, drag resistance, and reliable vibration dampening in tough operational environments.
-
06B2B COMMERCIAL / EXPORT
MA22-045-01-4-T6
The MA22-045-01-4-T6 is a medium-reach, heavy-duty mounting arm engineered for specialized vehicle mirror applications requiring an optimal balance of extension and structural rigidity. Featuring a wide single-bay open frame paired with a high-elevation vertical riser, this T6-grade aluminum assembly delivers superior vibration damping and impact resistance in demanding off-road and commercial operations.
-
07B2B COMMERCIAL / EXPORT
MA-006
The MA-006 is a compact, medium-duty ball-head mounting arm designed for precision vehicle auxiliary mirror and device mounting. Precision-engineered with a sleek, solid cantilever extension arm attached to a vertical hinge base and topped with a standardized spherical ball stud, it provides multi-axis tilt and rotation adjustment while offering robust vibration resistance under demanding field conditions.
-
08B2B COMMERCIAL / EXPORT
MA22-090-01-4-T6
The MA22-090-01-4-T6 is an extra-tall, heavy-duty closed-loop mounting assembly engineered for large-scale commercial and tactical vehicle mirror systems requiring maximum vertical span and structural integrity. Precision-crafted from high-strength T6-grade aluminum alloy, it features dual-anchor hinge blocks linked by a reinforced, double-window vertical frame, offering unmatched resistance against severe vibration, mechanical stress, and high-speed wind resistance.
