Throw
176mm -
Height
108mm -
Diameter
Ø 16mm -
Material
Mild Steel
MA-615

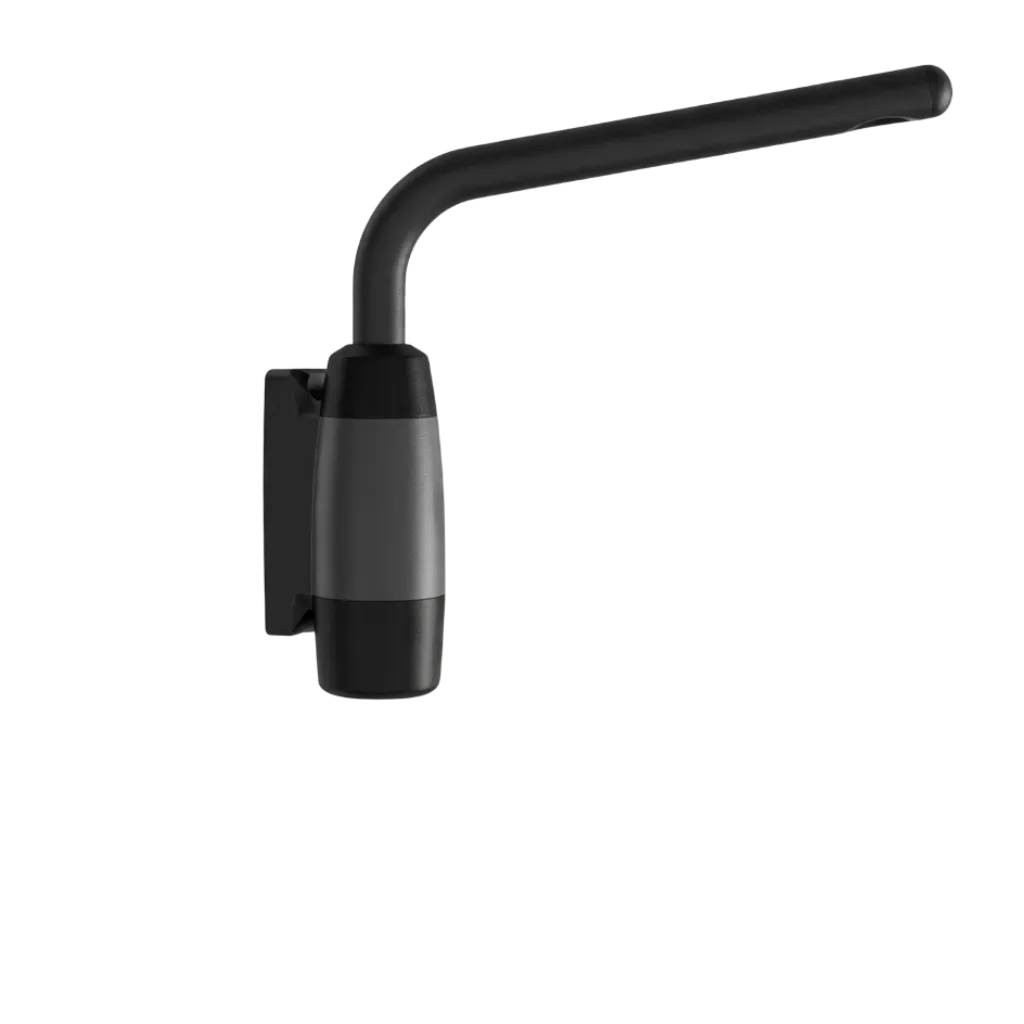

The MA-615 is an extended horizontal-outreach mirror mounting arm engineered for medium-duty commercial and utility vehicles requiring wide lateral extension and optimal field of view. Designed with a continuous tubular boom featuring a sweeping 90-degree bend mounted to a heavy-duty single-pivot hinge base, it delivers superior structural stability, low wind drag, and exceptional vibration dampening under severe field conditions.
ENQUIRE NOW-
B2B COMMERCIAL / EXPORT
Full System Specifications
Structural & Material Specifications
-
Material Grade
High-Strength Steel
-
Surface Treatment
Premium Matte Black Powder Coating
-
Frame Profile
Single-Hinge Right-Angle Tubular Extension Boom
-
Structural Rating
Medium-Duty Commercial Standard
Mounting & Environmental Performance
-
Base Mounting Interface
Heavy-Duty Vertical Hinge Block Mount
-
Load Capacity
Up to 14.5 kg (32 lbs) Static / 8.0 kg (17.6 lbs) Dynamic
-
Vibration Dampening
Integrated High-Durometer Elastomeric Bushings
-
Environmental Resistance
Weatherproof, Salt-Spray, and UV Exposure Protection
Available Variants
Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
-
01B2B COMMERCIAL / EXPORT
VM100 Series
The VM100 Series is a high-performance, extra-tall main vision mirror system engineered for primary side-view applications across large industrial, commercial, and tactical transport vehicles. Featuring an elongated 383 x 183 mm (15" x 7.2") optical profile, it provides exceptional vertical and depth awareness to effectively monitor full vehicle lengths and eliminate critical side-lane blind spots.
-
02B2B COMMERCIAL / EXPORT
MA22-051-01-4-T6
The MA22-051-01-4-T6 is an ultra-tall, gusset-reinforced heavy-duty mounting arm designed for severe-duty vehicle applications demanding high structural stability at maximum vertical reach. Crafted from high-strength T6-grade aluminum alloy, it features an integrated diagonal truss strut bridging the dual-bay base frame to an extra-long vertical riser, providing exceptional rigidity against high-speed wind loads and heavy dynamic vibration.
-
03B2B COMMERCIAL / EXPORT
MA22-045-01-4-T6
The MA22-045-01-4-T6 is a medium-reach, heavy-duty mounting arm engineered for specialized vehicle mirror applications requiring an optimal balance of extension and structural rigidity. Featuring a wide single-bay open frame paired with a high-elevation vertical riser, this T6-grade aluminum assembly delivers superior vibration damping and impact resistance in demanding off-road and commercial operations.
-
04B2B COMMERCIAL / EXPORT
MA22-065-01-4-T6
The MA22-065-01-4-T6 is an ultra-tall, compact-base mounting arm assembly engineered for heavy-duty vehicular mirror applications requiring maximum vertical clearance with minimal lateral footprint. Crafted from high-strength T6-grade aluminum alloy, it combines a streamlined single-window base frame with an extra-long upright riser stem, offering exceptional structural rigidity, wind-load resistance, and vibration dampening under severe field conditions.
-
05B2B COMMERCIAL / EXPORT
MA22-039-01-4-T6
The MA22-039-01-4-T6 is a compact, high-rigidity mirror mounting arm engineered for tight-clearance vehicular applications requiring high stability. Built with a single-bay reinforced loop body and an ultra-tall vertical upright, this high-strength T6 aluminum alloy arm offers maximum structural support and vibration reduction while maintaining a slim lateral profile.
-
06B2B COMMERCIAL / EXPORT
KVA-003
The KVA-003 is a curved gooseneck mirror mounting arm engineered for commercial and medium-duty utility vehicles requiring overhead reach and downward angle positioning. Featuring a high-arching curved tubular boom attached to a angled pivot mounting flange, it provides optimal blind-spot coverage, aerodynamic stability, and effective vibration isolation under severe field conditions.
-
07B2B COMMERCIAL / EXPORT
MA22-090-01-4-T6
The MA22-090-01-4-T6 is an extra-tall, heavy-duty closed-loop mounting assembly engineered for large-scale commercial and tactical vehicle mirror systems requiring maximum vertical span and structural integrity. Precision-crafted from high-strength T6-grade aluminum alloy, it features dual-anchor hinge blocks linked by a reinforced, double-window vertical frame, offering unmatched resistance against severe vibration, mechanical stress, and high-speed wind resistance.
-
08B2B COMMERCIAL / EXPORT
MA-620
The MA-620 is an extra-tall dual-anchor closed-loop mirror mounting assembly engineered for medium-duty commercial transport and fleet vehicles requiring maximum vertical span, stability, and vibration dampening. Built with top and bottom mounting flanges linked by a multi-bay reinforced vertical frame, it offers outstanding torsional strength and wind-load resistance in high-speed, heavy-duty road applications.
