Throw
215mm -
Height
540mm -
Diameter
Ø 16mm -
Material
Mild Steel
MA-620

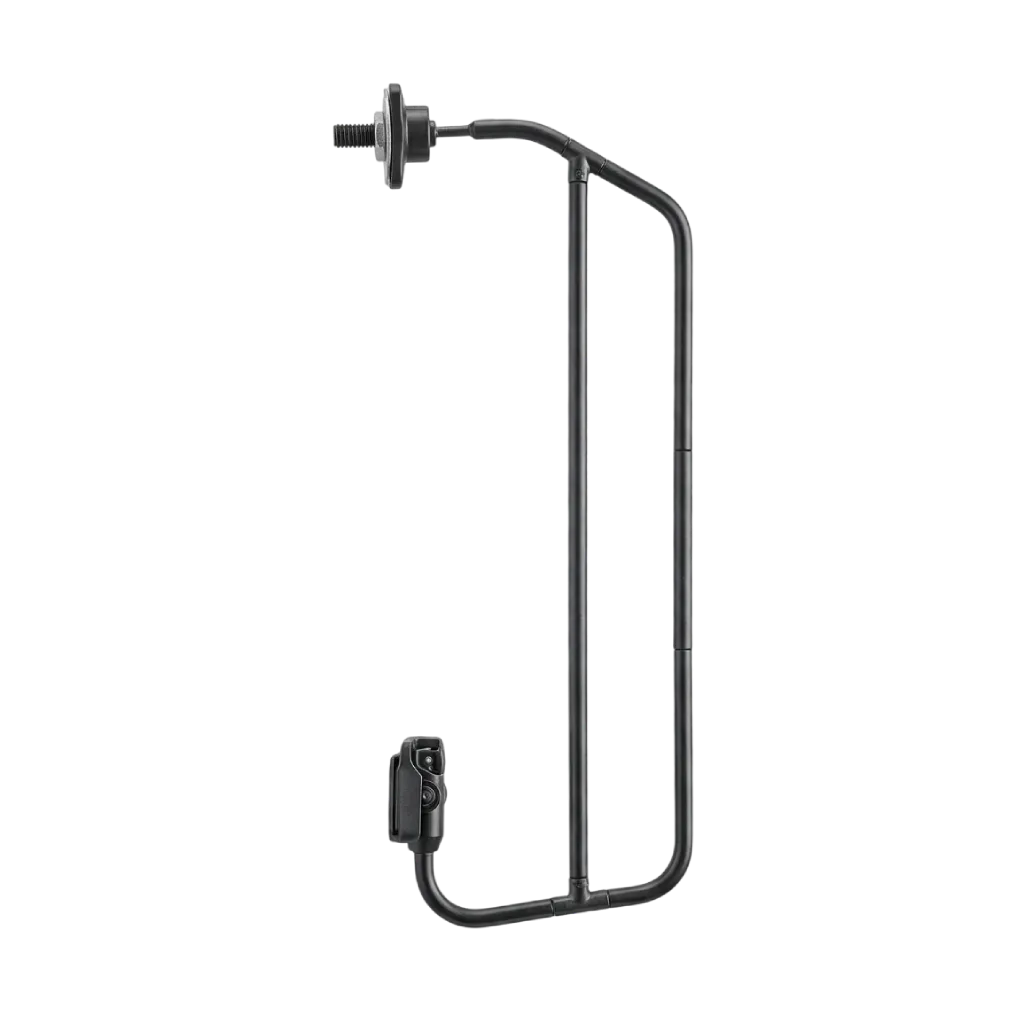

The MA-620 is an extra-tall dual-anchor closed-loop mirror mounting assembly engineered for medium-duty commercial transport and fleet vehicles requiring maximum vertical span, stability, and vibration dampening. Built with top and bottom mounting flanges linked by a multi-bay reinforced vertical frame, it offers outstanding torsional strength and wind-load resistance in high-speed, heavy-duty road applications.
ENQUIRE NOW-
B2B COMMERCIAL / EXPORT
Full System Specifications
Structural & Material Specifications
-
Material Grade
Structural Aluminum Alloy
-
Surface Treatment
Premium Matte Black Powder Coating
-
Frame Profile
Dual-Anchor Closed C-Frame with Parallel Vertical Support Bars
-
Structural Rating
Medium-Duty Commercial Standard
Mounting & Environmental Performance
-
Base Mounting Interface
Dual Anchors (Upper Flange Mount & Lower Hinge Block Mount)
-
Load Capacity
Up to 22 kg (48.5 lbs) Static / 12 kg (26.4 lbs) Dynamic
-
Vibration Dampening
Multi-Point Dual-Anchor Elastomeric Isolation Bushings
-
Environmental Resistance
Weatherproof, UV-Stabilized, and Salt-Spray Protected
Available Variants
Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
-
01B2B COMMERCIAL / EXPORT
MA22-024-01-4-T6
The MA22-024-01-4-T6 is an extended-height, heavy-duty mounting arm assembly engineered for high-reach bracketry and overhead mirror positioning on specialized vehicles. Constructed from high-tensile T6-grade aluminum alloy, it features an elongated vertical riser, a reinforced dual-window horizontal span, and a heavy-duty hinged base built to resist severe operational vibration and mechanical strain.
-
02B2B COMMERCIAL / EXPORT
VM2 Series
The VM2 Series is a heavy-duty, high-visibility vehicle mirror system engineered to deliver maximum field of view and operational durability in demanding environments. Featuring a compact 205 x 150mm high-clarity lens, it enhances operator situational awareness, reduces blind spots, and withstands harsh vehicular vibration and environmental conditions.
-
03B2B COMMERCIAL / EXPORT
MA22-079-01-4-T6
The MA22-079-01-4-T6 is a full-frame, dual-anchor closed loop mounting assembly engineered for heavy-duty vehicle mirror systems requiring maximum structural rigidity and stability. Precision-machined from high-strength T6-grade aluminum alloy, it features a C-clamp dual-hinge configuration with top and bottom mounting blocks connected by a multi-bay vertical frame, providing exceptional torsional strength, wind-load resistance, and vibration isolation under severe operational environments.
-
04B2B COMMERCIAL / EXPORT
MA22-051-01-4-T6
The MA22-051-01-4-T6 is an ultra-tall, gusset-reinforced heavy-duty mounting arm designed for severe-duty vehicle applications demanding high structural stability at maximum vertical reach. Crafted from high-strength T6-grade aluminum alloy, it features an integrated diagonal truss strut bridging the dual-bay base frame to an extra-long vertical riser, providing exceptional rigidity against high-speed wind loads and heavy dynamic vibration.
-
05B2B COMMERCIAL / EXPORT
KVA-003
The KVA-003 is a curved gooseneck mirror mounting arm engineered for commercial and medium-duty utility vehicles requiring overhead reach and downward angle positioning. Featuring a high-arching curved tubular boom attached to a angled pivot mounting flange, it provides optimal blind-spot coverage, aerodynamic stability, and effective vibration isolation under severe field conditions.
-
06B2B COMMERCIAL / EXPORT
MA22-098-01-4-T6
The MA22-098-01-4-T6 is an extended-outreach mounting arm assembly designed for wide-body vehicles requiring significant side clearance and overhead riser positioning. Precision-crafted from high-strength T6-grade aluminum alloy, it features a widened dual-window horizontal extension paired with an ultra-tall vertical stem, delivering optimal structural load balance, drag stability, and vibration dampening under rugged operational conditions.
-
07B2B COMMERCIAL / EXPORT
VM5 Series
The VM5 Series is a premium, extended-view vehicle mirror system engineered for maximum blind-spot reduction and operational safety in high-risk environments. Featuring an expanded 196 x 296 mm (7.71" x 11.65") high-clarity lens, it delivers ultra-wide coverage, superior rearward visibility, and robust vibration damping across heavy industrial and military fleet applications.
-
08B2B COMMERCIAL / EXPORT
MA22-039-01-4-T6
The MA22-039-01-4-T6 is a compact, high-rigidity mirror mounting arm engineered for tight-clearance vehicular applications requiring high stability. Built with a single-bay reinforced loop body and an ultra-tall vertical upright, this high-strength T6 aluminum alloy arm offers maximum structural support and vibration reduction while maintaining a slim lateral profile.
