Throw
263mm -
Height
181mm -
Diameter
Ø 16mm -
Material
Mild Steel
MA-526

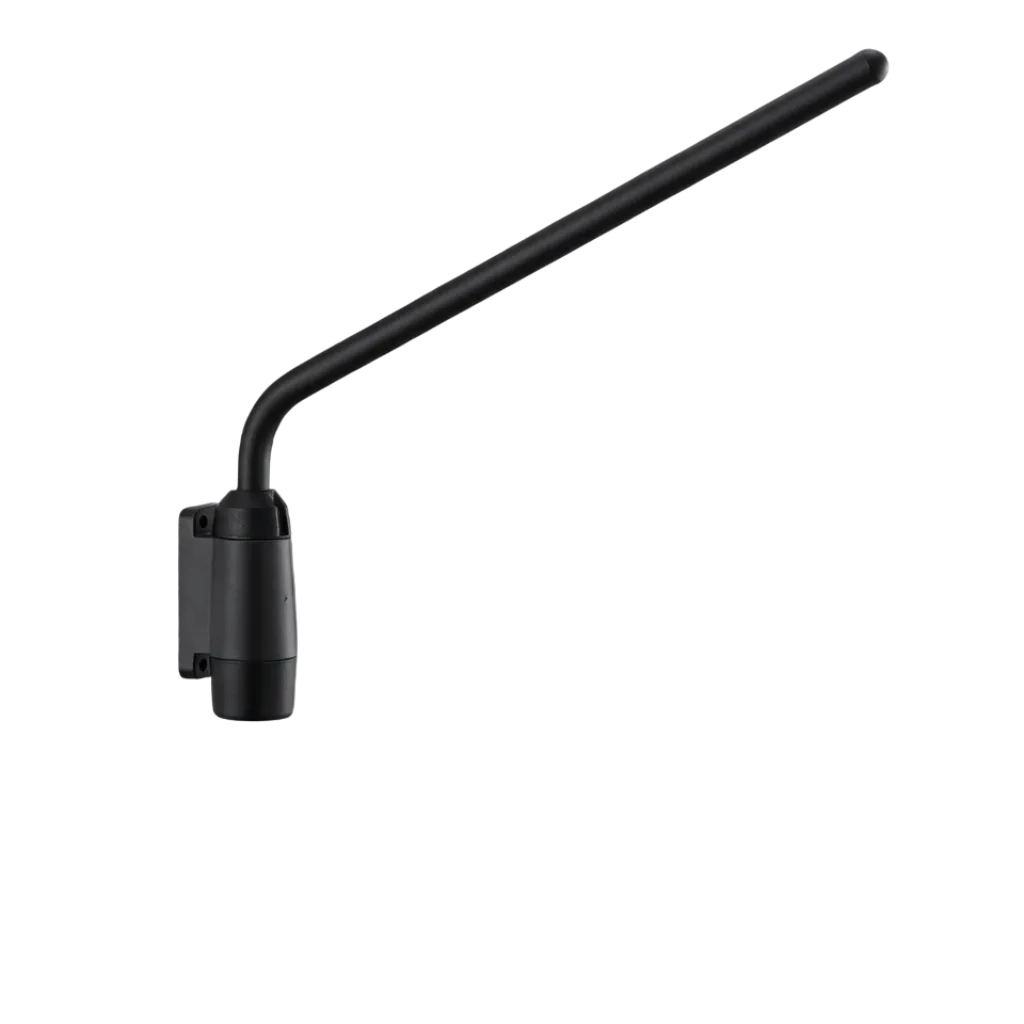

The MA-526 is an extended angled mirror mounting arm designed for medium-duty commercial and utility vehicles requiring high lateral outreach and overhead positioning. Precision-engineered with a heavy-duty single-pivot hinge base and a continuous tubular boom extended at an upward angle, it offers an expanded field of view, drag resistance, and reliable vibration dampening in tough operational environments.
ENQUIRE NOW-
B2B COMMERCIAL / EXPORT
Full System Specifications
Structural & Material Specifications
-
Material Grade
Structural Aluminum Alloy
-
Surface Treatment
Weather-Resistant Finish
-
Frame Profile
Single-Bar Angled Extension Boom
-
Structural Rating
Medium-Duty Commercial Standard
Mounting & Environmental Performance
-
Base Mounting Interface
Heavy-Duty Vertical Hinge Block Mount
-
Load Capacity
Up to 15 kg (33 lbs) Static / 8.5 kg (18.7 lbs) Dynamic
-
Vibration Dampening
Integrated High-Durometer Elastomeric Bushings
-
Operating Temperature
−50°C to +120°C
Available Variants
Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
-
01B2B COMMERCIAL / EXPORT
MA22-090-01-4-T6
The MA22-090-01-4-T6 is an extra-tall, heavy-duty closed-loop mounting assembly engineered for large-scale commercial and tactical vehicle mirror systems requiring maximum vertical span and structural integrity. Precision-crafted from high-strength T6-grade aluminum alloy, it features dual-anchor hinge blocks linked by a reinforced, double-window vertical frame, offering unmatched resistance against severe vibration, mechanical stress, and high-speed wind resistance.
-
02B2B COMMERCIAL / EXPORT
MA-640
The MA-640 is an extended S-curve vertical mirror mounting arm engineered for medium-duty commercial and fleet vehicles requiring a right-hand offset along with high overhead clearance. Precision-fabricated with a 16 mm tubular profile featuring a swan-neck S-bend attached to a heavy-duty single-pivot hinge base, it ensures optimal field-of-view positioning, low wind resistance, and superior vibration dampening under rugged operational conditions.
-
03B2B COMMERCIAL / EXPORT
MA22-079-01-4-T6
The MA22-079-01-4-T6 is a full-frame, dual-anchor closed loop mounting assembly engineered for heavy-duty vehicle mirror systems requiring maximum structural rigidity and stability. Precision-machined from high-strength T6-grade aluminum alloy, it features a C-clamp dual-hinge configuration with top and bottom mounting blocks connected by a multi-bay vertical frame, providing exceptional torsional strength, wind-load resistance, and vibration isolation under severe operational environments.
-
04B2B COMMERCIAL / EXPORT
VM1R Series
The VM1R Series is a robust vehicle mirror designed to provide a wide and clear rearward view for demanding vehicle applications. Its large 305 × 205 mm lens offers enhanced visibility, making it suitable for commercial, utility, tactical, and heavy duty vehicles.
-
05B2B COMMERCIAL / EXPORT
VM100 Series
The VM100 Series is a high-performance, extra-tall main vision mirror system engineered for primary side-view applications across large industrial, commercial, and tactical transport vehicles. Featuring an elongated 383 x 183 mm (15" x 7.2") optical profile, it provides exceptional vertical and depth awareness to effectively monitor full vehicle lengths and eliminate critical side-lane blind spots.
-
06B2B COMMERCIAL / EXPORT
MA22-024-01-4-T6
The MA22-024-01-4-T6 is an extended-height, heavy-duty mounting arm assembly engineered for high-reach bracketry and overhead mirror positioning on specialized vehicles. Constructed from high-tensile T6-grade aluminum alloy, it features an elongated vertical riser, a reinforced dual-window horizontal span, and a heavy-duty hinged base built to resist severe operational vibration and mechanical strain.
-
07B2B COMMERCIAL / EXPORT
MA-610
The MA-610 is an extended drop-down L-arm mirror mounting assembly engineered for medium-duty commercial and fleet vehicles requiring downward mirror positioning and expanded lateral visibility. Designed with a continuous tubular frame featuring a high-rise bend and long vertical drop attached to a heavy-duty single-hinge pivot base, it offers optimal load balance, wind resistance, and vibration dampening in severe operational environments.
-
08B2B COMMERCIAL / EXPORT
MA22-051-01-4-T6
The MA22-051-01-4-T6 is an ultra-tall, gusset-reinforced heavy-duty mounting arm designed for severe-duty vehicle applications demanding high structural stability at maximum vertical reach. Crafted from high-strength T6-grade aluminum alloy, it features an integrated diagonal truss strut bridging the dual-bay base frame to an extra-long vertical riser, providing exceptional rigidity against high-speed wind loads and heavy dynamic vibration.
