Throw
361mm -
Height
567mm -
Diameter
Ø 22mm -
Material
Aluminium
MA22-024-01-4-T6

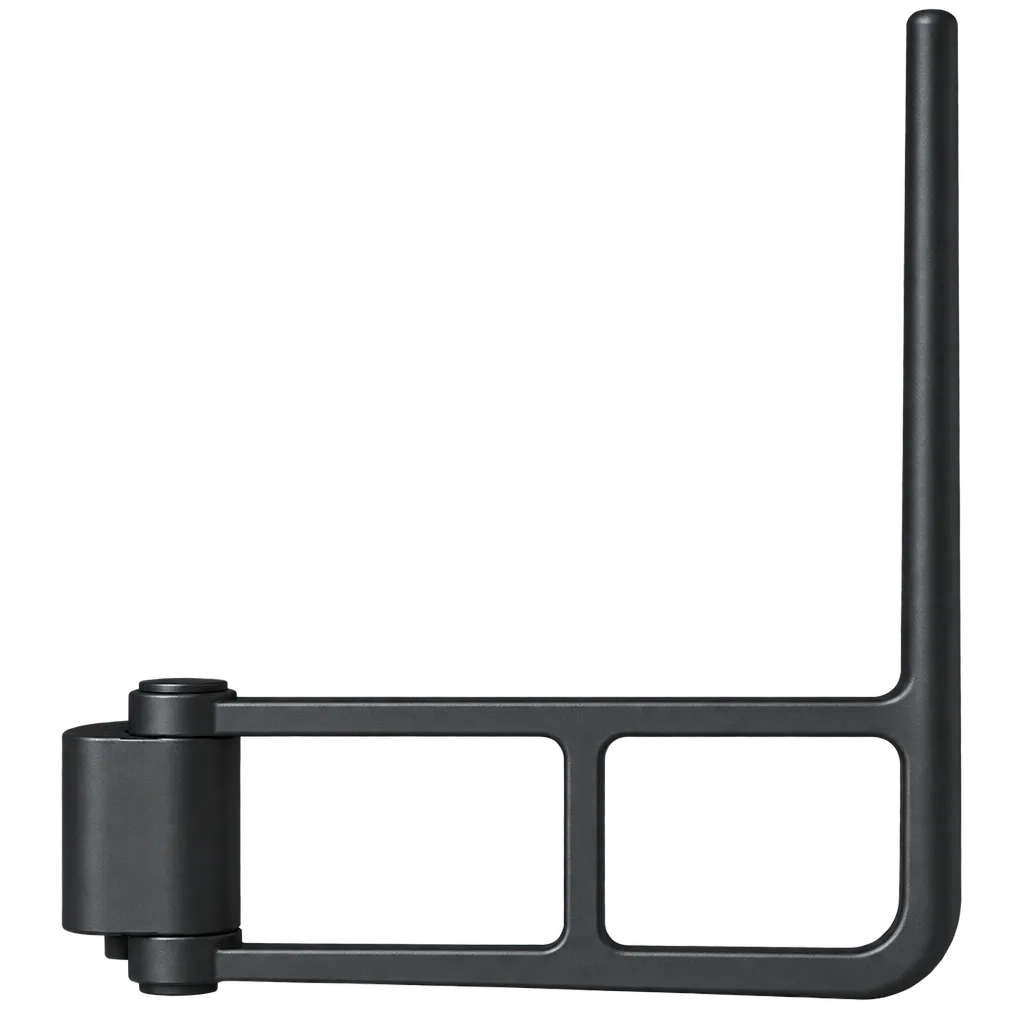

The MA22-024-01-4-T6 is an extended-height, heavy-duty mounting arm assembly engineered for high-reach bracketry and overhead mirror positioning on specialized vehicles. Constructed from high-tensile T6-grade aluminum alloy, it features an elongated vertical riser, a reinforced dual-window horizontal span, and a heavy-duty hinged base built to resist severe operational vibration and mechanical strain.
ENQUIRE NOW-
B2B COMMERCIAL / EXPORT
Full System Specifications
1. Structural & Material Specifications
-
Material Grade
6061-T6 Aircraft-Grade Aluminum Alloy
-
Surface Treatment
Anti-Corrosion Coating
-
Frame Profile
Extended Vertical Riser with Reinforced Dual-Bay Horizontal Support
-
Structural Rating
Heavy Industrial / Tactical Grade
Mounting & Environmental Performance
-
Base Mounting Interface
Heavy-Duty Single-Hinge Pivot Block (2-Bolt / Clamp Fitment)
-
Load Capacity
Up to 22 kg (48.5 lbs) Static / 12 kg (26.5 lbs) Dynamic
-
Vibration Dampening
Multi-Point Elastomeric Isolation Bushings
-
Environmental Resistance
Weatherproof, Salt-Spray, and High-UV Resistant
Available Variants
Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
-
01B2B COMMERCIAL / EXPORT
KVA-004
The KVA-004 is a rigid, angled extension mirror mounting arm engineered for medium-duty commercial and utility vehicles requiring fixed outward reach and downward angle positioning. Built with a solid flat baseplate mount connected to a tubular boom featuring a distinct downward bend, it ensures optimal field-of-view extension, high structural rigidity, and effective vibration dampening under rugged operational conditions.
-
02B2B COMMERCIAL / EXPORT
MA-620
The MA-620 is an extra-tall dual-anchor closed-loop mirror mounting assembly engineered for medium-duty commercial transport and fleet vehicles requiring maximum vertical span, stability, and vibration dampening. Built with top and bottom mounting flanges linked by a multi-bay reinforced vertical frame, it offers outstanding torsional strength and wind-load resistance in high-speed, heavy-duty road applications.
-
03B2B COMMERCIAL / EXPORT
MA22-057-01-4-T6
The MA22-057-01-4-T6 is an extended-vertical mounting arm engineered for specialized vehicle mirror setups requiring high overhead clearance paired with a compact footprint. Precision-machined from high-strength T6-grade aluminum alloy, it features a single-window square base loop coupled with an extra-long vertical riser stem to provide stable positioning and vibration dampening under severe field conditions.
-
04B2B COMMERCIAL / EXPORT
MA22-045-01-4-T6
The MA22-045-01-4-T6 is a medium-reach, heavy-duty mounting arm engineered for specialized vehicle mirror applications requiring an optimal balance of extension and structural rigidity. Featuring a wide single-bay open frame paired with a high-elevation vertical riser, this T6-grade aluminum assembly delivers superior vibration damping and impact resistance in demanding off-road and commercial operations.
-
05B2B COMMERCIAL / EXPORT
MA22-051-01-4-T6
The MA22-051-01-4-T6 is an ultra-tall, gusset-reinforced heavy-duty mounting arm designed for severe-duty vehicle applications demanding high structural stability at maximum vertical reach. Crafted from high-strength T6-grade aluminum alloy, it features an integrated diagonal truss strut bridging the dual-bay base frame to an extra-long vertical riser, providing exceptional rigidity against high-speed wind loads and heavy dynamic vibration.
-
06B2B COMMERCIAL / EXPORT
MA-600
The MA-600 is an inverted U-loop mirror mounting arm engineered for medium-duty commercial and fleet vehicles requiring dual-point mirror attachment and wide-view stability. Designed with a continuous curved tubular frame mounted to a vertical single-hinge pivot base, it provides exceptional structural balance, wind resistance, and vibration isolation for main and auxiliary side-view mirrors.
-
07B2B COMMERCIAL / EXPORT
MA22-090-01-4-T6
The MA22-090-01-4-T6 is an extra-tall, heavy-duty closed-loop mounting assembly engineered for large-scale commercial and tactical vehicle mirror systems requiring maximum vertical span and structural integrity. Precision-crafted from high-strength T6-grade aluminum alloy, it features dual-anchor hinge blocks linked by a reinforced, double-window vertical frame, offering unmatched resistance against severe vibration, mechanical stress, and high-speed wind resistance.
-
08B2B COMMERCIAL / EXPORT
MA-006
The MA-006 is a compact, medium-duty ball-head mounting arm designed for precision vehicle auxiliary mirror and device mounting. Precision-engineered with a sleek, solid cantilever extension arm attached to a vertical hinge base and topped with a standardized spherical ball stud, it provides multi-axis tilt and rotation adjustment while offering robust vibration resistance under demanding field conditions.
