Multi-Sensor Target Acquisition
Combines a cooled MWIR thermal camera, HD daylight optics, and low-light sensor in a single bi-ocular housing. -
Integrated Precision Geolocation
Internal GPS/Galileo receiver, eye-safe Laser Rangefinder (LRF), and digital magnetic compass calculate exact target grid coordinates. -
Bi-ocular Ergonomic Design
Comfortable dual-eyepiece viewing reduces operator fatigue during extended surveillance operations in the field. -
Tactical Interoperability
Outputs real-time video and target coordinate data to Battle Management Systems (BMS) and C4I networks.

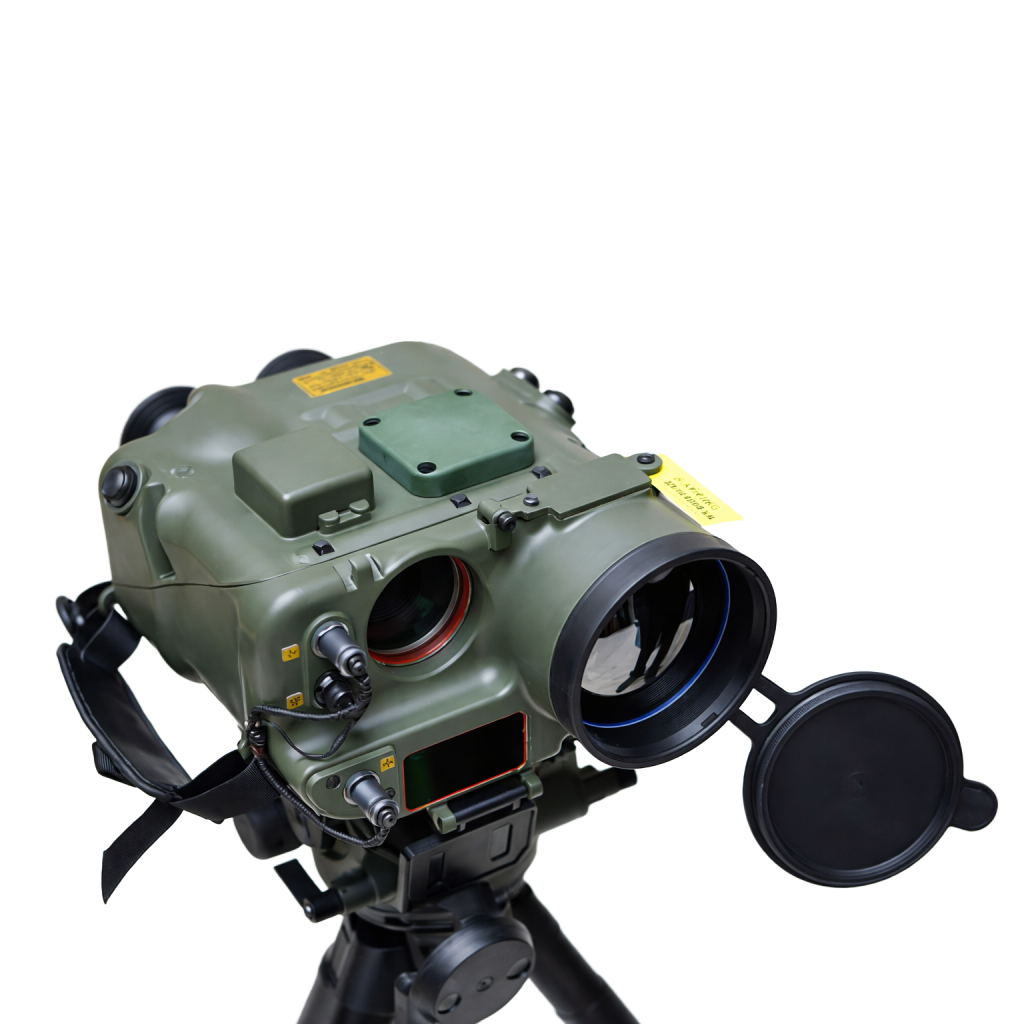

Military Thermal Imaging Camera
The Military Thermal Imaging Camera is a lightweight, handheld and tripod-mountable multi-function target acquisition system designed for dismounted infantry, special operations forces, and forward artillery observers. Integrating a high-sensitivity cooled thermal channel, high-resolution daylight optics, eye-safe laser rangefinder, digital magnetic compass, and GPS module, the unit enables operators to detect, recognize, identify, and geo-locate distant targets in complete darkness, heavy fog, and severe battlefield obscurants.
ENQUIRE NOW-
B2B COMMERCIAL / EXPORT
Full System Specifications
Optical & Thermal Sensor Specifications
-
Thermal Detector Type
Cooled MWIR (640×512 resolution, 3.7 – 4.8 µm)
-
Daylight / Low-Light Optics
Color HD Camera with Electronic Zoom
-
Human Detection Range
> 7 km
-
Vehicle Detection Range
> 10 km
Target Location & Physical Details
-
Laser Rangefinder (LRF)
Eye-safe Class 1 (Range: 10 m to 10,000 m, Accuracy: ±2 m)
-
System Weight
< 3.0 kg (6.6 lbs) excluding tripod
-
Environmental Protection
MIL-STD-810G / IP67 waterproof & shock-resistant
-
Power Supply
Standard AA / Commercial Rechargeable Lithium Batteries (> 5 hours runtime)
Available Variants
Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
-
01GREY ZONE / RESTRICTED
Spectrum analyzers
The Tactical Spectrum Analyzer is a high-performance, ruggedized, portable signal analysis and spectrum monitoring system engineered for electronic warfare (EW), signals intelligence (SIGINT), and RF interference hunting. Featuring real-time spectrum analysis (RTSA) with gap-free FFT capture, the system detects transient, short-duration, and frequency-hopping RF signals in complex electromagnetic environments. Built in a weather-sealed enclosure with direct manual controls and an intuitive graphical interface, it delivers precise time- and frequency-domain measurements for forward observers and signal monitoring teams.
-
02GREY ZONE / RESTRICTED
Direction finding equipment
The Direction Finding Equipment is a high-precision tactical radio frequency (RF) geolocation and spectrum monitoring system designed for Signals Intelligence (SIGINT), Electronic Support Measures (ESM), and Counter-UAS missions. Featuring a compact multi-element direction-finding antenna array coupled with a processing unit and a ruggedized tactical operator terminal, the system rapidly detects, intercepts, and pinpoints the Line of Bearing (LoB) of RF threat emitters. Built for rapid deployment in grey-zone and high-threat environments, it enables real-time threat identification and location tracking across hostile electromagnetic battlefields.
-
03B2B COMMERCIAL / EXPORT
Aerial Surveillance Systems
The Tactical VTOL Aerial Surveillance System is a highly deployable, runway-independent Unmanned Aerial System (UAS) engineered for multi-mission Intelligence, Surveillance, and Reconnaissance (ISR). Utilizing a hybrid quad-rotor and fixed-wing design, the system launches and recovers vertically in confined, austere environments before transitioning to highly efficient forward flight. Equipped with an advanced electro-optical/infrared (EO/IR) gimbal and encrypted data links, it delivers persistent, real-time situational awareness, target tracking, and battle damage assessment for tactical ground forces and maritime units.
-
04GREY ZONE / RESTRICTED
Seismic intrusion sensors
The Seismic Intrusion Sensor System is an unattended ground sensor (UGS) platform engineered for covert perimeter security, border monitoring, and force protection. Utilizing high-sensitivity seismic geophones and acoustic transducers, the system detects low-frequency ground vibrations caused by foot traffic, tracked/wheeled vehicles, and excavation activities. Equipped with onboard digital signal processing (DSP) algorithms, it filters out ambient environmental noise while classifying threats in real time. Designed for rapid tactical emplacement in austere environments, it provides continuous 24/7 early warning intelligence to tactical command networks.
-
05GREY ZONE / RESTRICTED
AI-Enabled Electronic Warfare
The AI-Enabled Electronic Warfare System is an advanced electromagnetic combat platform that uses artificial intelligence and machine learning to detect, analyze, classify, and counter hostile radar, communication, and electronic threats in real time. The system supports offensive, defensive, and intelligence-driven electronic warfare missions across air, land, sea, space, and cyber domains.
-
06B2B COMMERCIAL / EXPORT
Ground Surveillance Radar
The Ground Surveillance Radar System is a man-portable, tripod-mounted tactical surveillance platform engineered for long-range perimeter protection, border monitoring, and force protection. Combining high-resolution Doppler radar with integrated electro-optical and thermal camera sensors, the system provides automated all-weather target detection, track-while-scan functionality, and positive target identification. Designed for rapid field deployment in forward operating bases and austere combat environments, it operates reliably under extreme conditions to deliver continuous real-time situational awareness.
-
07GREY ZONE / RESTRICTED
Communication intercept systems
The Communication Intercept System is a modular, high-performance tactical signals intelligence (SIGINT) and communications intelligence (COMINT) platform designed for field monitoring, signal interception, and electronic warfare support. Engineered for deployment in contested and grey-zone environments, the system intercepts, demodulates, analyzes, and geolocates RF communication networks—including military tactical radios, cellular signals, satellite downlinks, and push-to-talk transmissions. Built into ruggedized transit cases with multi-antenna arrays, it provides defense and security agencies with continuous real-time spectrum dominance and intelligence gathering.
-
08B2B COMMERCIAL / EXPORT
Multi-Sensor Thermal Imaging System
The Multi-Sensor Thermal Imaging System is an advanced, tripod-mounted electro-optical surveillance platform designed for long-range perimeter defense, border surveillance, and critical infrastructure monitoring. Integrating a high-sensitivity cooled thermal camera, continuous optical zoom daylight sensor, laser rangefinder, and precision pan-tilt unit, the system provides persistent 24/7 intelligence, surveillance, and target acquisition (ISTAR) capability across total darkness, fog, smoke, and degraded atmospheric conditions.
Explore Defence Categories
Browse a wide range of defence equipment and technologies organized for easy discovery.
View All Categories
Manufacture with Precision. Deliver with Confidence.
Delivering end-to-end OEM manufacturing for defence systems—from design and engineering to production and integration. Built to global standards with precision, reliability, and scalability.
Speak With OEM Team
Request Procurement Quote
- All sales subject to applicable export control laws and regulations. End User Certificates required.
