Gen 3 Image Intensification
Powered by high-gain Gen 3 auto-gated image intensifier tubes for superior image resolution and detection ranges in pitch-black environments. -
Hands-Free Head Assembly
Includes a fully adjustable tactical head harness (skull crusher) allowing hands-free operation and flip-up stowing capability. -
Integrated IR Illuminator
Built-in infrared light source enables clear short-range vision and map reading in total darkness without emitting a visible light signature. -
High-Light Cut-Off Protection
Automatically shuts down the image intensifier tube when exposed to sudden bright light sources to protect the system and operator vision.

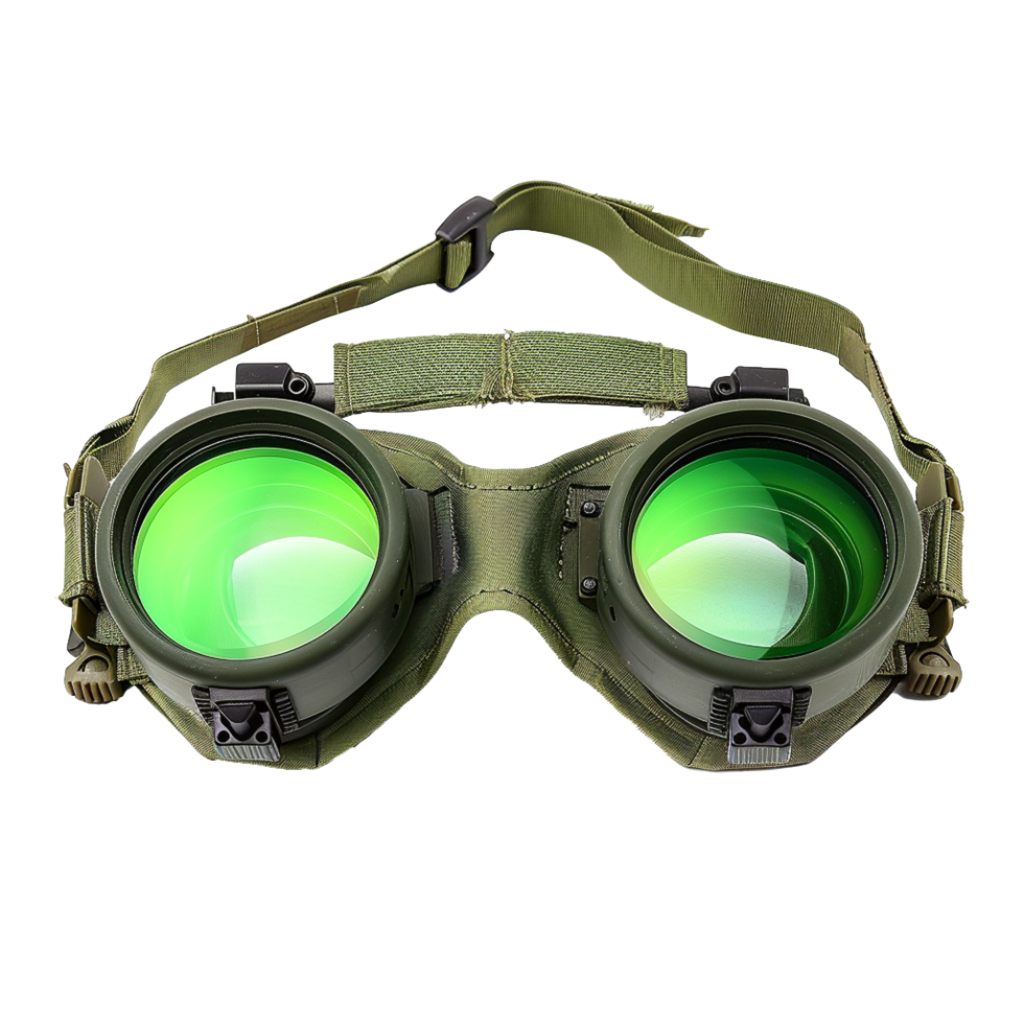

Military Night Vision Goggles
The Military Night Vision Goggles are field-proven, single-tube, dual-eyepiece night vision systems designed for ground troops, perimeter defense, and tactical night operations. Utilizing Gen 3 auto-gated image intensifier technology, the system amplifies ambient light from stars and the moon to deliver high-resolution green or white phosphor imagery in extreme low-light environments. Equipped with an ergonomic head harness assembly, integrated short-range infrared (IR) illuminator, and automatic highlight cut-off protection, these goggles provide reliable, hands-free nocturnal mobility and situational awareness.
ENQUIRE NOW-
B2B COMMERCIAL / EXPORT
Military Night Vision Goggles Specifications
Optics & Image Intensifier Performance
-
Optical Configuration
Single-Tube, Dual-Eyepiece (Bi-Ocular)
-
Image Intensifier Tube
Gen 3 Auto-Gated (Green Phosphor P43 / White Phosphor P45)
-
Resolution
64 – 72 lp/mm
-
Magnification
1x Optical (Optional 3x / 5x Afocal Magnifier Lenses)
-
Field of View (FOV)
40° Standard
-
Focus Range
20 cm to Infinity
-
Diopter Adjustment
+2 to -6 Diopters
-
IR Illuminator
Built-In 850nm IR LED with Indicator
Physical, Electrical & Environmental
-
Housing Material
High-Impact Polymer / Molded Composite
-
Mounting Capability
Head Harness / Helmet Shroud Mount
-
Power Source
2 x AA Batteries (1.5V) or 1 x BA-5567/U
-
Operating Runtime
≥ 30 Hours (Without IR) / ≥ 10 Hours (With IR)
-
Ingress Protection
IP67 (Waterproof to 1m for 30 minutes)
-
Operating Temperature
-50°C to +51°C
-
Weight (Goggles Only)
~680 g
-
Compliance Standard
MIL-STD-810G Qualified
Available Variants
Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
-
01B2B COMMERCIAL / EXPORT
Thermal Imaging Surveillance System
The Thermal Imaging Surveillance System is an advanced, long-range electro-optical surveillance and target detection system designed for military base defense, border security, and critical infrastructure protection. Equipped with a high-sensitivity cooled mid-wave infrared (MWIR) thermal sensor and continuous optical zoom, the system provides persistent 24/7 situational awareness through total darkness, fog, smoke, and atmospheric haze. Mounted on a precision pan-tilt unit, it detects, tracks, and identifies ground and aerial threats at extended standoff ranges.
-
02B2B COMMERCIAL / EXPORT
Compact Handheld NV Device
The Compact Handheld NV Device is a ruggedized, military-grade digital night vision and tactical observation camera designed for handheld surveillance, reconnaissance, and perimeter monitoring. Equipped with an integrated top carry handle, high-sensitivity low-light optical sensor, and secondary auxiliary illuminator/laser module, it provides clear target observation in severe low-light and pitch-black tactical environments. Built to military standards with an ergonomic, field-ready outer shell, it supports tripods, external video output, and rapid battery swaps for long-duration operations.
-
03B2B COMMERCIAL / EXPORT
Aerial Surveillance Systems
The Tactical VTOL Aerial Surveillance System is a highly deployable, runway-independent Unmanned Aerial System (UAS) engineered for multi-mission Intelligence, Surveillance, and Reconnaissance (ISR). Utilizing a hybrid quad-rotor and fixed-wing design, the system launches and recovers vertically in confined, austere environments before transitioning to highly efficient forward flight. Equipped with an advanced electro-optical/infrared (EO/IR) gimbal and encrypted data links, it delivers persistent, real-time situational awareness, target tracking, and battle damage assessment for tactical ground forces and maritime units.
-
04B2B COMMERCIAL / EXPORT
Military Cargo Delivery Drone
The Military Cargo Delivery Drone is an all-weather, heavy-lift hexacopter platform designed for tactical logistics and multi-mission combat support. Engineered with high-strength carbon fiber composites and redundant 6-rotor propulsion, it provides rapid, autonomous resupply of critical cargo—including medical kits, ammunition, and secure communication hardware—to forward operating locations in hostile environments without risking flight crew safety.
-
05GREY ZONE / RESTRICTED
Seismic intrusion sensors
The Seismic Intrusion Sensor System is an unattended ground sensor (UGS) platform engineered for covert perimeter security, border monitoring, and force protection. Utilizing high-sensitivity seismic geophones and acoustic transducers, the system detects low-frequency ground vibrations caused by foot traffic, tracked/wheeled vehicles, and excavation activities. Equipped with onboard digital signal processing (DSP) algorithms, it filters out ambient environmental noise while classifying threats in real time. Designed for rapid tactical emplacement in austere environments, it provides continuous 24/7 early warning intelligence to tactical command networks.
-
06GREY ZONE / RESTRICTED
Electronic surveillance receivers
The Electronic Surveillance Receiver is a high-performance, tactical spectrum monitoring and signals intelligence (SIGINT) receiver designed for electronic support measures (ESM), radio frequency (RF) reconnaissance, and threat detection. Housed in a ruggedized, drop-resistant enclosure with integrated dual displays and tactical audio/RF controls, the receiver intercepts, analyzes, and geolocates RF signals across complex operational environments. Optimized for government, military, and grey-zone monitoring missions, it delivers real-time time-domain and frequency-domain signal processing with high probability of intercept for transient emitters.
-
07GREY ZONE / RESTRICTED
Spectrum analyzers
The Tactical Spectrum Analyzer is a high-performance, ruggedized, portable signal analysis and spectrum monitoring system engineered for electronic warfare (EW), signals intelligence (SIGINT), and RF interference hunting. Featuring real-time spectrum analysis (RTSA) with gap-free FFT capture, the system detects transient, short-duration, and frequency-hopping RF signals in complex electromagnetic environments. Built in a weather-sealed enclosure with direct manual controls and an intuitive graphical interface, it delivers precise time- and frequency-domain measurements for forward observers and signal monitoring teams.
-
08B2B COMMERCIAL / EXPORT
Portable Thermal Camera
The Portable Thermal Camera System is a lightweight, tripod-mounted reconnaissance and observation system engineered for dismounted infantry, border surveillance, and tactical perimeter defense. Featuring dual electro-optical payloads—including a high-sensitivity cooled mid-wave infrared (MWIR) thermal sensor and an ultra-low-light visible camera—the system provides long-range threat detection through total darkness, smoke, dust, and battlefield obscurants. Designed for rapid deployment in austere environments, it delivers precision target location coordinates and continuous situational awareness.
Explore Defence Categories
Browse a wide range of defence equipment and technologies organized for easy discovery.
View All Categories
Manufacture with Precision. Deliver with Confidence.
Delivering end-to-end OEM manufacturing for defence systems—from design and engineering to production and integration. Built to global standards with precision, reliability, and scalability.
Speak With OEM Team
Request Procurement Quote
- All sales subject to applicable export control laws and regulations. End User Certificates required.
