Dual-Channel Imaging Payload
Integrates high-resolution cooled MWIR thermal optics with a daylight/low-light digital color camera for continuous 24/7 observation. -
Integrated Precision Geolocation
Features an eye-safe Laser Rangefinder (LRF), digital magnetic compass, and internal GPS to calculate accurate target location coordinates. -
Rapid Tactical Setup
Quick-release tripod mount allows for two-minute operational deployment by a single dismounted operator. -
Low Power Consumption
High-efficiency thermal cooler design powered by standard commercial or military BA-5590 batteries for extended mission endurance.

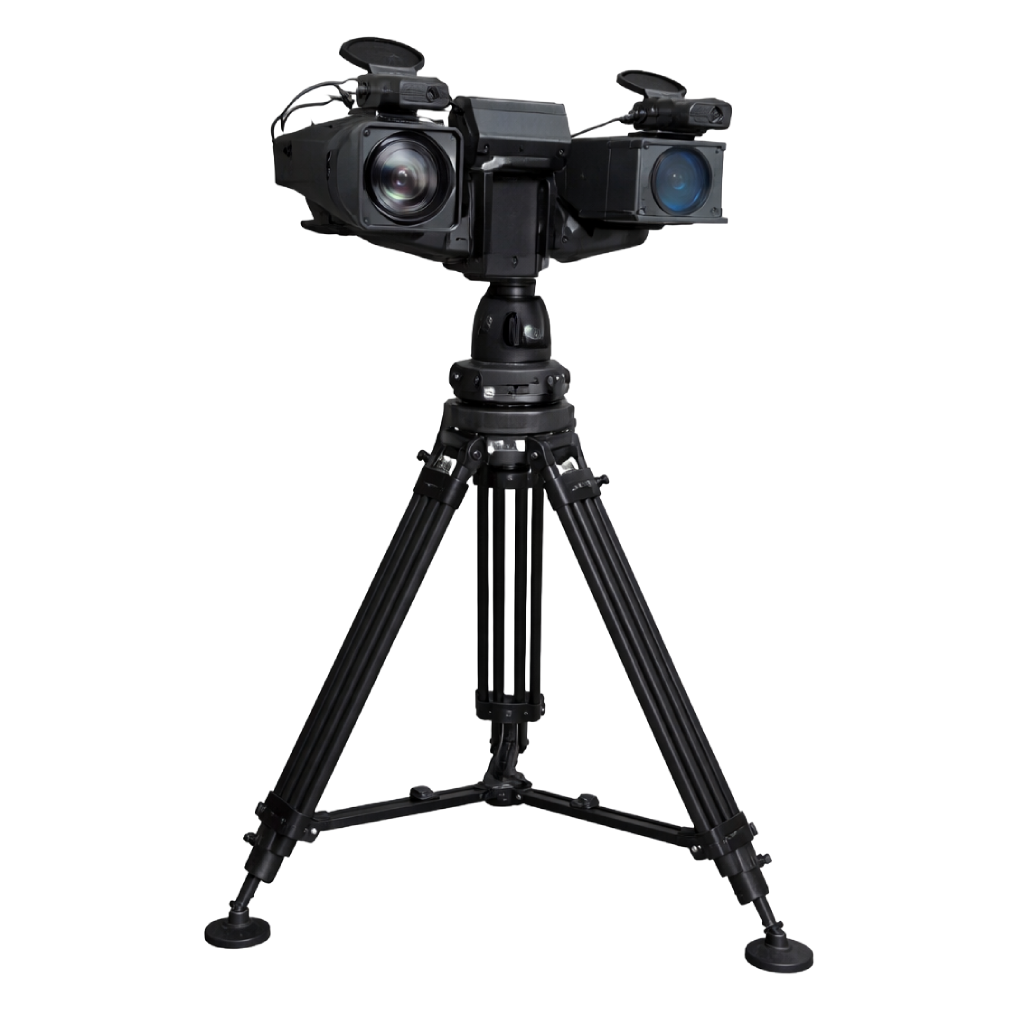

Portable Thermal Camera
The Portable Thermal Camera System is a lightweight, tripod-mounted reconnaissance and observation system engineered for dismounted infantry, border surveillance, and tactical perimeter defense. Featuring dual electro-optical payloads—including a high-sensitivity cooled mid-wave infrared (MWIR) thermal sensor and an ultra-low-light visible camera—the system provides long-range threat detection through total darkness, smoke, dust, and battlefield obscurants. Designed for rapid deployment in austere environments, it delivers precision target location coordinates and continuous situational awareness.
Full System Specifications
Thermal & Optical Performance
-
Thermal Detector Type
Cooled MWIR (640×512 pixel resolution, 15 µm pitch)
-
Spectral Band
3.7 µm to 4.8 µm
-
Field of View (FOV)
Continuous Optical Zoom (2° to 25°)
-
Human Detection Range
> 8 km
System Hardware & Environmental
-
Laser Rangefinder
Eye-safe Class 1M (Range up to 10 km, ±1m accuracy)
-
Total Weight (incl. Tripod)
< 6.8 kg (15 lbs)
-
Ingress Protection & Rating
IP67 sealed, MIL-STD-810H compliant
-
Power & Operating Time
Dual internal Li-ion batteries (> 8 hours continuous operation)
Available Variants
Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
-
01GREY ZONE / RESTRICTED
Communication intercept systems
The Communication Intercept System is a modular, high-performance tactical signals intelligence (SIGINT) and communications intelligence (COMINT) platform designed for field monitoring, signal interception, and electronic warfare support. Engineered for deployment in contested and grey-zone environments, the system intercepts, demodulates, analyzes, and geolocates RF communication networks—including military tactical radios, cellular signals, satellite downlinks, and push-to-talk transmissions. Built into ruggedized transit cases with multi-antenna arrays, it provides defense and security agencies with continuous real-time spectrum dominance and intelligence gathering.
-
02B2B COMMERCIAL / EXPORT
Ground Surveillance Radar
The Ground Surveillance Radar System is a man-portable, tripod-mounted tactical surveillance platform engineered for long-range perimeter protection, border monitoring, and force protection. Combining high-resolution Doppler radar with integrated electro-optical and thermal camera sensors, the system provides automated all-weather target detection, track-while-scan functionality, and positive target identification. Designed for rapid field deployment in forward operating bases and austere combat environments, it operates reliably under extreme conditions to deliver continuous real-time situational awareness.
-
03GREY ZONE / RESTRICTED
Autonomous Signal Disruption System
The Autonomous Signal Disruption System is an AI-driven electronic warfare platform designed to automatically detect, analyze, and disrupt hostile radio frequency communications, radar systems, navigation signals, and wireless networks. The system operates with minimal human intervention and provides adaptive electromagnetic attack capabilities across tactical and strategic environments.
-
04
Multi-Sensor Thermal Imaging System
The Multi-Sensor Thermal Imaging System is an advanced, tripod-mounted electro-optical surveillance platform designed for long-range perimeter defense, border surveillance, and critical infrastructure monitoring. Integrating a high-sensitivity cooled thermal camera, continuous optical zoom daylight sensor, laser rangefinder, and precision pan-tilt unit, the system provides persistent 24/7 intelligence, surveillance, and target acquisition (ISTAR) capability across total darkness, fog, smoke, and degraded atmospheric conditions.
-
05GREY ZONE / RESTRICTED
Direction finding equipment
The Direction Finding Equipment is a high-precision tactical radio frequency (RF) geolocation and spectrum monitoring system designed for Signals Intelligence (SIGINT), Electronic Support Measures (ESM), and Counter-UAS missions. Featuring a compact multi-element direction-finding antenna array coupled with a processing unit and a ruggedized tactical operator terminal, the system rapidly detects, intercepts, and pinpoints the Line of Bearing (LoB) of RF threat emitters. Built for rapid deployment in grey-zone and high-threat environments, it enables real-time threat identification and location tracking across hostile electromagnetic battlefields.
-
06GREY ZONE / RESTRICTED
Electronic surveillance receivers
The Electronic Surveillance Receiver is a high-performance, tactical spectrum monitoring and signals intelligence (SIGINT) receiver designed for electronic support measures (ESM), radio frequency (RF) reconnaissance, and threat detection. Housed in a ruggedized, drop-resistant enclosure with integrated dual displays and tactical audio/RF controls, the receiver intercepts, analyzes, and geolocates RF signals across complex operational environments. Optimized for government, military, and grey-zone monitoring missions, it delivers real-time time-domain and frequency-domain signal processing with high probability of intercept for transient emitters.
-
07GREY ZONE / RESTRICTED
Spectrum analyzers
The Tactical Spectrum Analyzer is a high-performance, ruggedized, portable signal analysis and spectrum monitoring system engineered for electronic warfare (EW), signals intelligence (SIGINT), and RF interference hunting. Featuring real-time spectrum analysis (RTSA) with gap-free FFT capture, the system detects transient, short-duration, and frequency-hopping RF signals in complex electromagnetic environments. Built in a weather-sealed enclosure with direct manual controls and an intuitive graphical interface, it delivers precise time- and frequency-domain measurements for forward observers and signal monitoring teams.
-
08
Military Thermal Imaging Camera
The Military Thermal Imaging Camera is a lightweight, handheld and tripod-mountable multi-function target acquisition system designed for dismounted infantry, special operations forces, and forward artillery observers. Integrating a high-sensitivity cooled thermal channel, high-resolution daylight optics, eye-safe laser rangefinder, digital magnetic compass, and GPS module, the unit enables operators to detect, recognize, identify, and geo-locate distant targets in complete darkness, heavy fog, and severe battlefield obscurants.
Explore Defence Categories
Browse a wide range of defence equipment and technologies organized for easy discovery.
View All Categories
Manufacture with Precision. Deliver with Confidence.
Delivering end-to-end OEM manufacturing for defence systems—from design and engineering to production and integration. Built to global standards with precision, reliability, and scalability.
Speak With OEM Team
Request Procurement Quote
- All sales subject to applicable export control laws and regulations. End User Certificates required.
