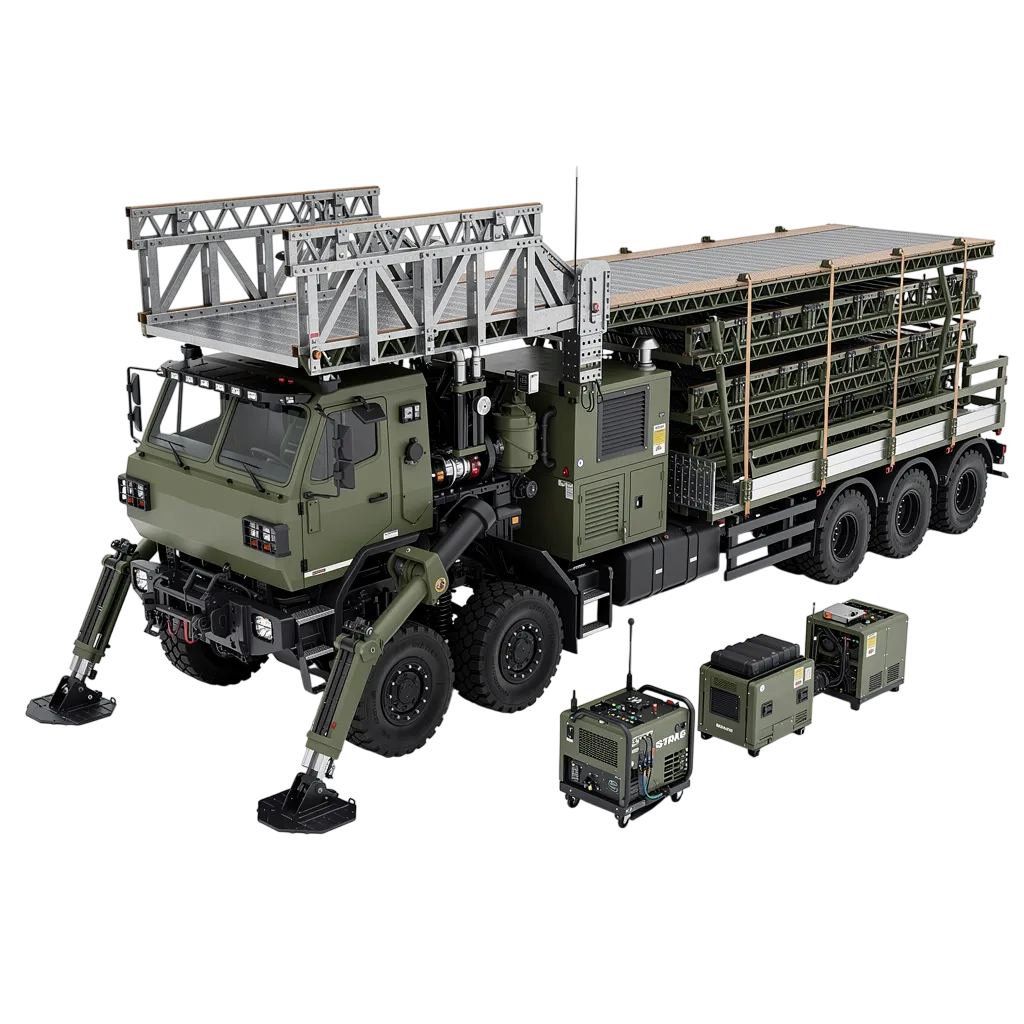

Tactical Military Bridging System

Bridge Type
Scissor or sliding modular gap crossing (Horizontal cantilever or scissor launch)
Span Capacity
Spans gaps up to 26 meters single-unit (or up to 14 meters in double-module mode)
Compatibility
Heavy tracked and wheeled combat armor (Main Battle Tanks & Armored Personnel Carriers)
Deployment Method
Hydraulic automated launch off chassis (Operated 100% under armor protection)

The Tactical Military Bridging System provides advanced dry-gap and wet-gap crossing capabilities for mechanized forces encountering wet gaps, deep ditches, or structurally compromised terrain. Designed for rapid assault deployment under front-line conditions, it ensures reliable transport of heavy tracked and wheeled armored vehicles, superior weight-bearing safety, rapid launch and retrieval cycles, and seamless integration with specialized combat engineer chassis and heavy tactical trucks.

Full System Specifications

Mobility & Deployment

Deployment Time

Rapid tactical deployment (Bridge launched in under 10 minutes)
Transport Platform

Heavy tactical 8 x 8 military truck or armored bridge layer chassis
Setup Method

Automated hydraulic cantilever / scissor-action launcher mechanism
Recovery Time

Fast retrieval and redeployment (Fully reversible launch cycle under 10 minutes)

Load & Performance

Vehicle Support

Heavy tracked armored vehicles, main battle tanks, tactical trucks, and combat engineering equipment
Load Classification

Military Load Class compliant (Up to MLC 50 for REBS / MLC 80+ for Leguan Wheeled)
Stability

Reinforced structural support system with hydraulic stabilizer outriggers for secure bank anchoring
Crossing Capacity

Continuous high-throughput vehicle and personnel movement over 4.0 m wide roadway

Available Variants

Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
