System Type
Heavy-duty EOD robot (UGV) / Multi-mission tactical robotics platform -
Neutralization Method
Mechanical manipulation / Disruptor mounts (supports up to 4 EOD disruptors, e.g., PAN, Pigstick, Hotrod, RE70) -
Compatibility
Tactical bomb squads, military engineering, CBRN/HazMat units, & C2 centers -
Operating Temperature
-20°C to +60°C (-4°F to +140°F) operational range

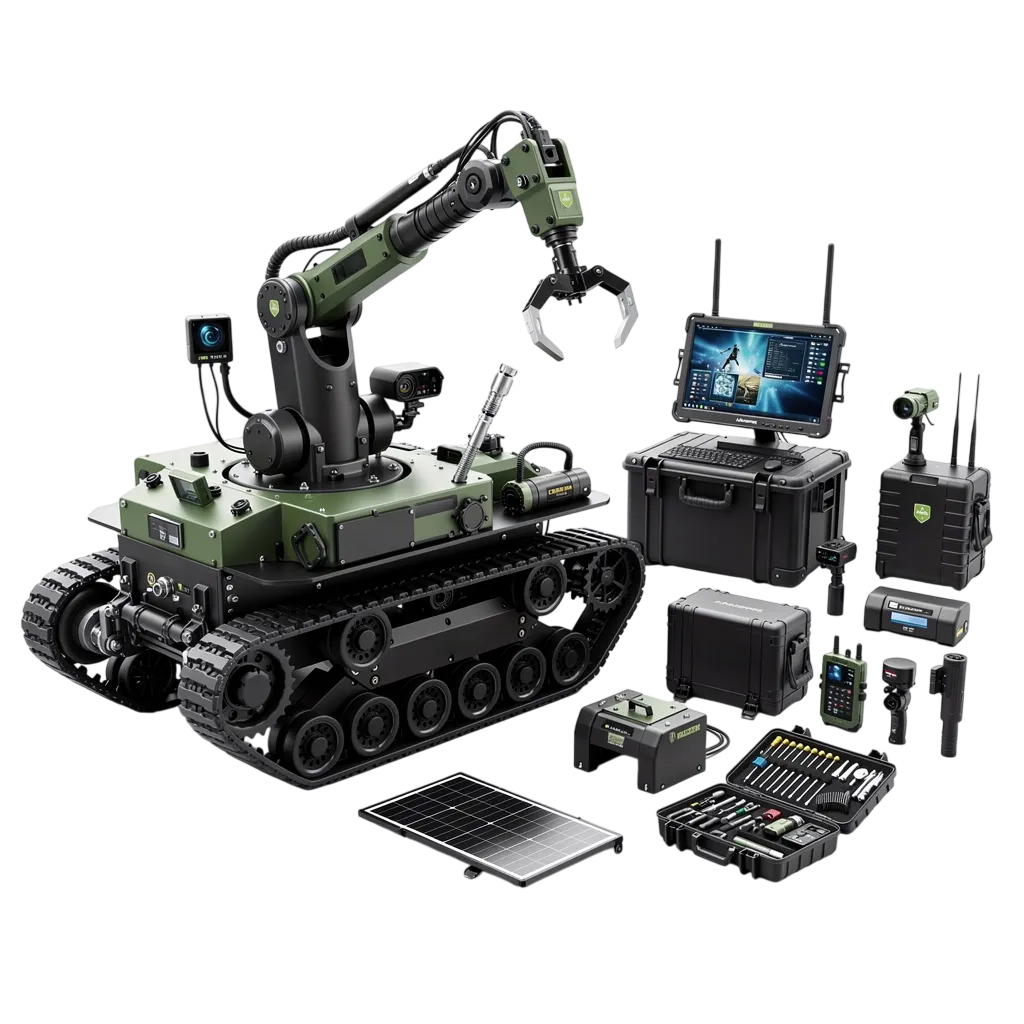

Remote Explosive Disposal Platform
The Remote Explosive Disposal Platform delivers highly precise, remote-controlled intervention, investigation, and neutralization of explosive hazards, including improvised explosive devices (IEDs), unexploded ordnance (UXO), and pipe bombs. Engineered to keep explosive ordnance disposal (EOD) technicians at a safe standoff distance, this unmanned ground vehicle (UGV) integrates a highly dexterous manipulator arm with multi-spectral inspection sensors and disruptive tactical tools to operate in tight urban spaces or rugged field environments.
Full System Specifications
Robotic Manipulation & Intervention
-
Dexterous Manipulator Arm
Multi-degree-of-freedom robotic arm providing a reach of up to 2.2 meters (87 in) horizontally and 3.1 meters (122 in) vertically, with a continuous 360-degree rotating wrist and high-capacity force-sensing gripper claw.
-
Heavy-Lift Capability
Engineered to lift and drag objects weighing over 113 kg (250+ lbs) near the chassis and up to 27 kg (60+ lbs) at full arm extension, allowing the safe relocation of heavy threat containers.
-
Co-Aligned Disruptor Mounts
Features universal mounting brackets on the manipulator arm to host up to 4 high-recoil water disruptors, mechanical de-arming tools, or energetic tools simultaneously.
-
Precision Control Interface
Closed-loop dynamic haptic feedback joysticks provide the remote operator with real-time tactile sensitivity and force perception when handling delicate firing circuits or complex fuses.
Sensing, Control & Communication
-
Multi-Camera Inspection Array
Equipped with up to five high-definition, low-light cameras, including a 30x optical zoom PTZ turret mast camera, a zoomable wrist-mounted gripper camera with IR lighting, and front/rear wide-angle driving cameras.
-
Secure Long-Range Telemetry
Employs military-grade, encrypted COFDM radio links (AES-256) to maintain robust, interference-free command and video transmission up to 1 kilometer (3,300+ ft) in dense urban or non-line-of-sight environments.
-
Tethered Backup Operation
Includes an integrated automatic spooling drum with up to 275 meters of fiber-optic cable for operations in RF-silenced, heavily jammed, or underground environments.
-
3D Hazard Mapping
Integrated LiDAR, thermal imaging, and multi-sensor fusion overlay physical obstacle maps, heat signatures, and spatial threat layouts directly onto the operator's command console.
Available Variants
Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
