System Type
Modular assault/tactical dry support bridge -
Military Load Class (MLC)
MLC 80 (Tracked) / MLC 120 (Wheeled) -
Compatibility
Wheeled tactical trucks (8 x 8 MAN HX77 / Oshkosh LVSR), tracked carriers, & armored launch vehicles -
Operating Temperature
-32°C to +55°C operational range

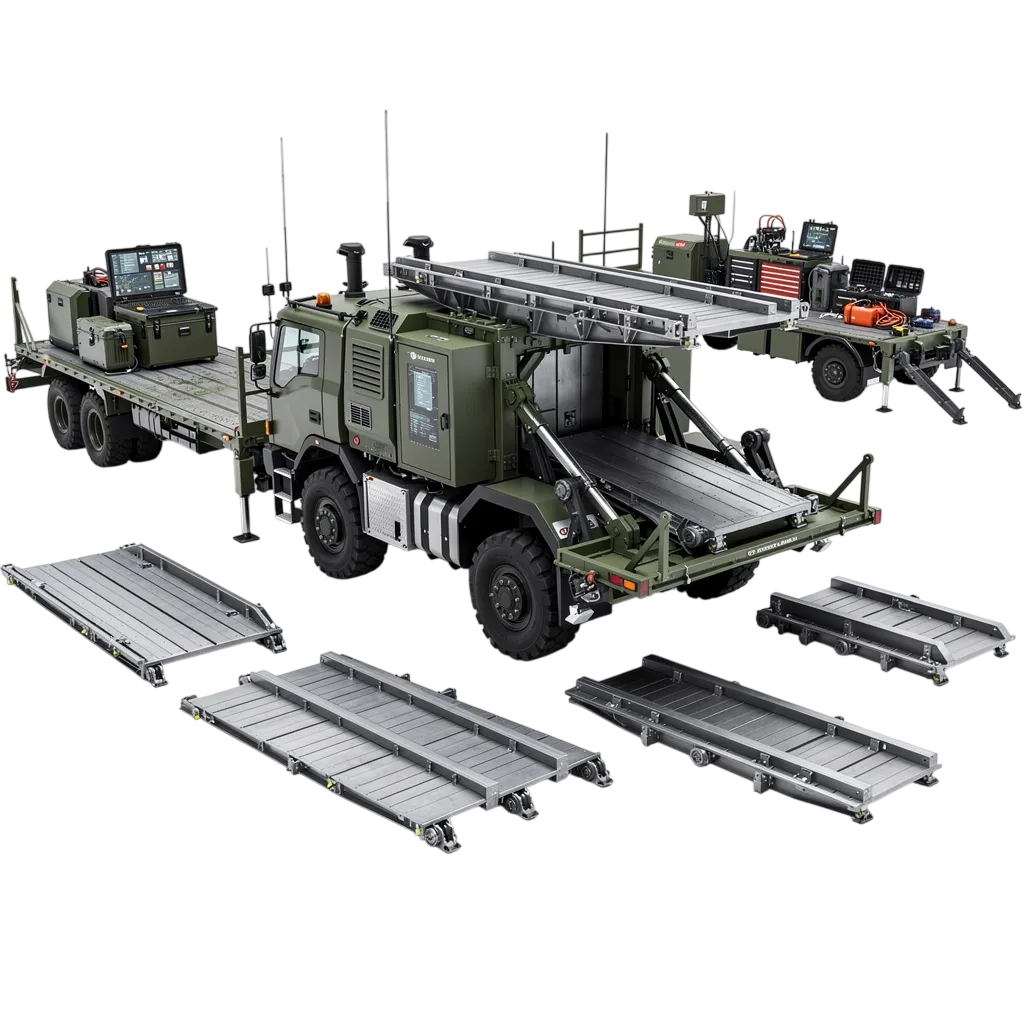

Rapid Deployment Bridge System
The Rapid Deployment Bridge System is a mobile, highly engineered tactical bridging asset designed to quickly span physical gaps, wet crossings, and damaged infrastructure during combat operations, natural disasters, or mobility-restrictive scenarios. By integrating heavy-duty structural engineering with automated launcher mechanisms, this system enables armored columns, support units, and tactical vehicles to cross obstacles up to 46 meters wide with minimal setup time and a crew of as few as eight personnel.
Full System Specifications
Bridging Capabilities & Structural Limits
-
High Load Capacity
Rated for Military Load Class 80 (MLC 80) for heavy main battle tanks (up to 70+ tons) and MLC 120 for heavy wheeled tactical transports and armored recovery vehicles.
-
Modular Reach
Features interconnecting military-grade aluminum alloy bridge spans that can be configured for short-gap crossings of 15 meters or coupled together to bridge gaps up to 46 meters.
-
Anti-Slip Roadway
High-friction, wear-resistant zinc-silicate non-skid surface coating applied to the deck panels to ensure secure tactical crossings in wet, muddy, or icy conditions.
-
Substructure Adaptability
High-tensile, adjustable bank seats and palisade supports stabilize long-span crossings over soft, irregular riverbeds, steep ravines, and unprepared shorelines.
Deployment Automation & Interface
-
Rapid Hydraulic Launching
Automated tension-beam launch mechanism deploys and locks bridge sections in place, completing a 46-meter span in under 90 minutes without requiring personnel to enter the water or exposed hazard zones.
-
Dual-Platform Transport
Modular bridge structures and launch arm assemblies are fully integrated onto heavy military tactical 8 x 8 wheeled chassis or transported via standard ISO flatrack pallets.
-
No-Tool Connection Pins
Features high-strength steel shear pins and auto-locking hydraulic positioning guides that mate bridge modules securely during the automated launch cycle.
-
Integrated Safety Sensors
Onboard tilt-sensors, hydraulic pressure transducers, and load-cell monitors transmit real-time deflection data directly to the launch vehicle's computer terminal to verify structural stability during crossing runs.
Available Variants
Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
