Expeditionary Accommodation Shelter

Configuration
Modular 20 ft 3-in-1 expandable ISO containerized housing unit (CLU) with fold-out insulated side walls and lightweight structural aluminum framing
Accommodation Capacity
Configurable from 4-man fireteam sleeping quarters to 12-man company-level bunking or tactical command post operations
Deployment
Rapid deployment set-up in under 20 minutes by 2–4 personnel with zero specialized heavy machinery required post-offload
Shelter Features
Integrated aluminum bunking, locking gear lockers, ambient LED tactical lighting, environmental control (ECU/HVAC), and hybrid solar/microgrid power ports

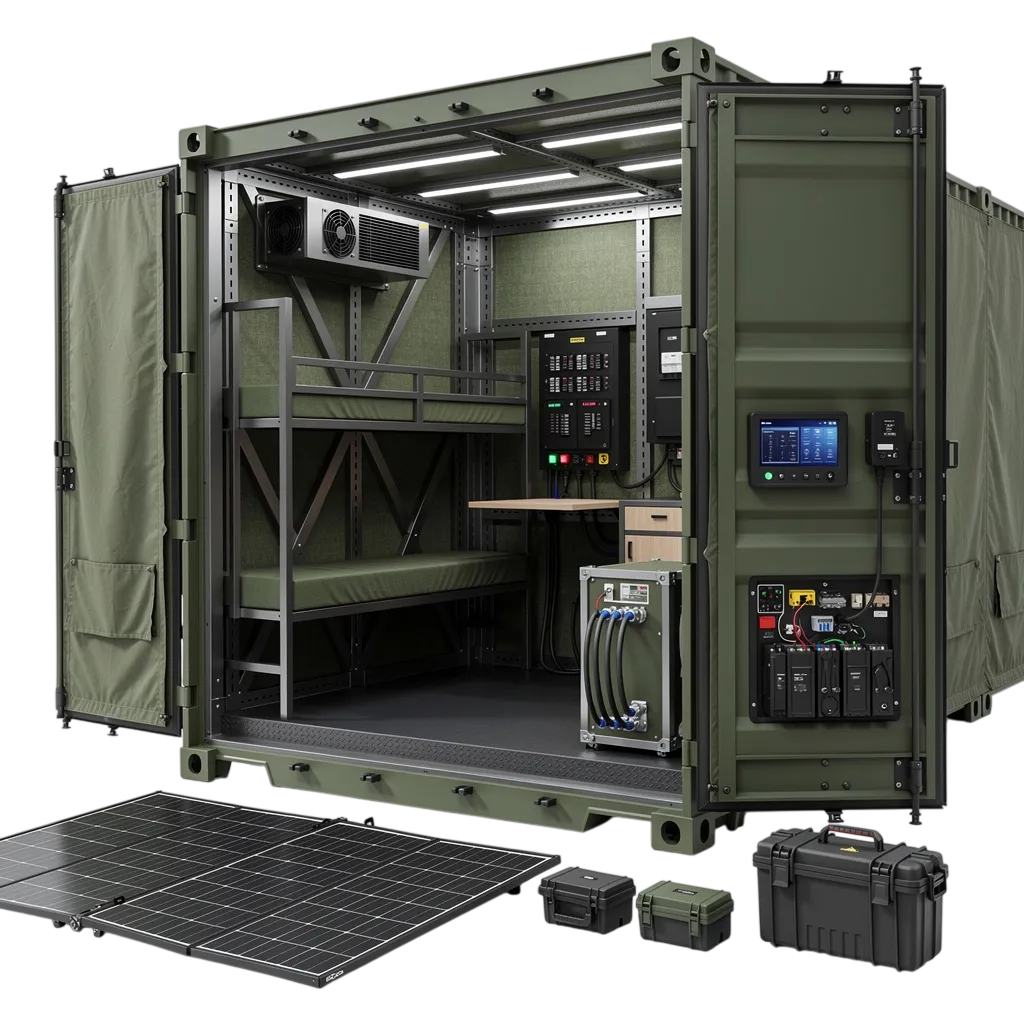

The Expeditionary Accommodation Shelter provides high-efficiency, rapidly deployable habitation infrastructure designed to deliver secure, climate-stabilized living quarters for military personnel in austere theater environments. Engineered to simplify field logistics and withstand multi-axis environmental elements, this structural system coordinates an insulated, rapid-expanding frame matrix with pre-installed utility distribution ports.

Full System Specifications

Personnel Comfort & Welfare

Structural Strength

Heavy-duty ISO 1496 Corten steel outer frame with reinforced composite sandwich panels rated for 9-high container stack loads
Weather Resistance

All-weather protection compliant with MIL-STD-810H; resistant to wind loads up to 100 mph (160 km/h), heavy snowfall (40 lbs/sq ft), driven rain, sandstorms, and UV degradation
Flooring

Anti-slip insulated composite flooring with chemical resistance and high load-bearing capacity (up to 250 lbs/sq ft static load)
Expandability

Interconnectable via weatherproof vestibule kits and sealable side corridors for multi-unit tactical base accommodation complexes

Utility & Life Support Systems

Climate Control

Integrated Mil-Spec Environmental Control Unit (ECU) providing 36,000 BTU cooling / heating operational from -32°C to +55°C (STANAG 2895 Hot/Cold Zones)
Electrical System

Internal dual-voltage (110V/220V 50/60Hz) electrical harness, LED red/white blackout lighting, smart load management, and external solar panel hybrid microgrid interface
Water Support

Quick-connect fresh water intake manifold and graywater drainage ports compatible with expeditionary shower/latrine trailer integration
Air Filtration

High-efficiency MERV 13 dust/particulate air filtration with integrated overpressure port for optional NATO STANAG CBRN (Chemical, Biological, Radiological, Nuclear) air filtration units

Available Variants

Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
