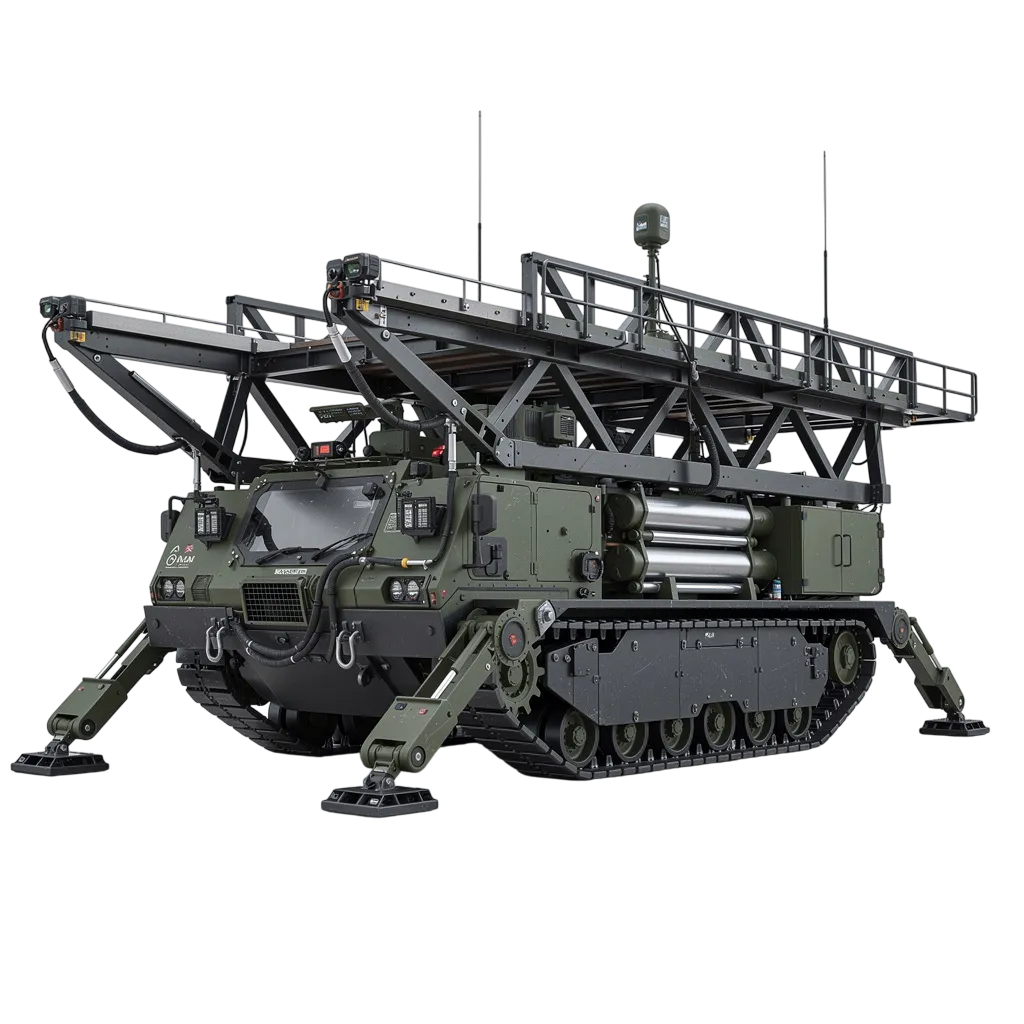

Armoured Vehicle Bridge System

Load Capacity
Heavy-duty MLC 85 / MLC 100+ tracking
Launch Mechanism
Under-armor cantilever horizontal launch mechanism (minimizes visual signature)
Compatibility
Heavy main battle tanks (M1A2 Abrams, Leopard 2) and tracked armor
Deployment Time
Fully operational span deployed under armor in under 3 minutes

The Armoured Vehicle Bridge System provides advanced, rapid gap-crossing capabilities for mechanized units operating under direct fire in high-threat environments. Designed to replace or bypass destroyed infrastructure, deep trenches, and water obstacles, it ensures reliable crossing pathways for heavy main battle tanks, superior ballistic protection for the launch crew, rapid under-armor deployment cycles, and seamless integration with tracked armored chassis and heavy mechanized brigade columns.

Full System Specifications

Mobility & Deployment

Chassis

Heavy tracked main battle tank chassis (M1A1 / Leopard 2 heavy armor hull)
Drive System

Torsion bar / hydro-pneumatic suspension with heavy-duty steel tracks
Terrain Capability

Sand, mud, snow, rocky terrain, and steep gradients up to 60% slope
Maximum Road Speed

Up to 68 km/h (42 mph) high-speed tactical mobility

Load & Performance

Load Classification

Military Load Class compliant up to MLC 85 / MLC 100+
Crossing Width

Bridges gaps up to 26 meters (single span) / 14 meters (overlap configuration)
Stability

Heavy hydraulic stabilizer outriggers and spades for firm anchor during launch
Operational Readiness

100% under-armor launch and recovery cycle operated by a 2-person crew

Available Variants

Multiple barrel length and configuration options — from ultra-compact CQB to full-length designated marksman configurations.
